Dry mills cut zirconia, PMMA, wax, PEEK and composite without water. This page lines up every dry-only milling unit we stock, from every brand, so you can compare axes, changers, utilities, materials and warranty before you ask for pricing.
The 16 dry mills compared below

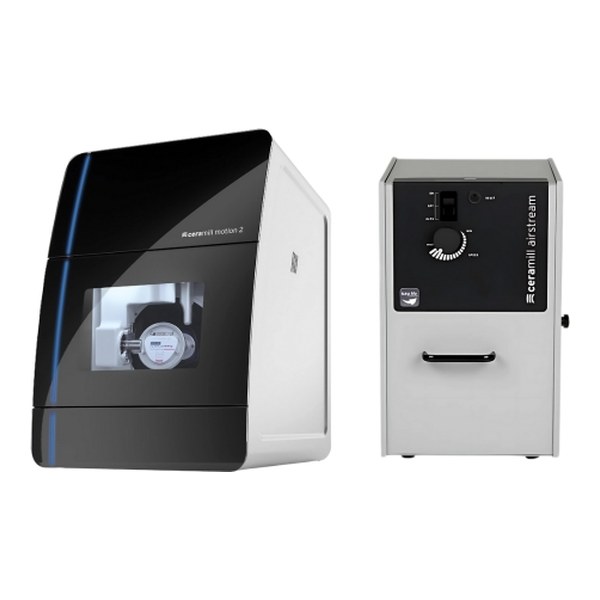

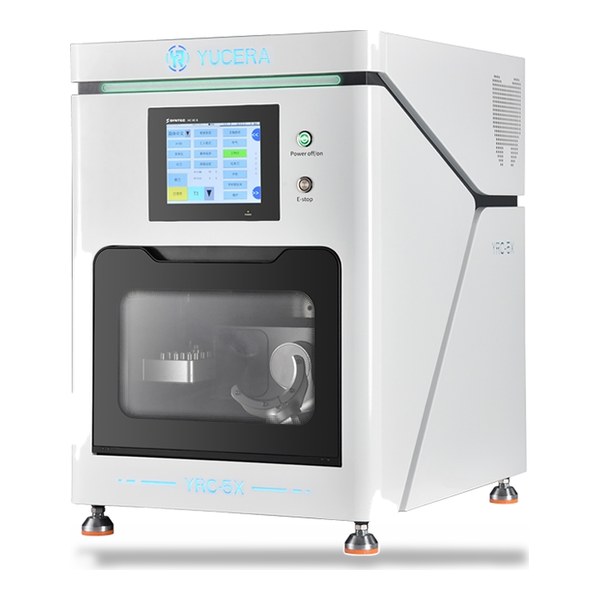

DEPRAG, iMES iCORE, UP3D, BSM, Gusrom, YUCERA, Amann Girrbach
Every specification below comes from the manufacturer or our store listing for that exact model. A field that nobody publishes reads “Not published”, never a guess. Click a photo to open the machine on the store. Pricing is configuration-dependent: call or request a quote and we send a written figure the same day.
| Characteristic | DEPRAGD5 Air Free | DEPRAGD5 Max | iMES iCORECORiTEC 150i DRY | iMES iCORECORiTEC 250i Loader dry | iMES iCORECORiTEC 350i PRO ION | iMES iCORECORiTEC 350i Loader PRO ION | UP3DP53 | UP3DP53DC | UP3DP55D | BSMP52D | BSM500DS | GusromGSM 5D | YUCERAYRC-5X | YUCERAYRC-5X-NC | YUCERAYRC-9PRO | Amann GirrbachCeramill Motion 2 DRY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Machine | ||||||||||||||||
| USDD SKU | 488866 | 485197 | 488640 | 488646 | 488660 | 488662 | 473288 476416 (open box) 483147 (open box) | 474123 | 482366 | 477163 | 496271 | 493802 | 496292 | 496293 | 496298 | 467430-Dry |
| Processing mode | Dry | Dry | Dry | Dry | Dry | Dry | Dry | Dry | Dry | Dry | Dry | Dry | Dry | Dry | Dry | Dry |
| Axes | 5-axis | 5-axis | 5-axis simultaneous (A-axis 360°, B-axis 130°) | 5-axis simultaneous (A-axis 360°, B-axis up to +/-30°); portfolio matrix lists 5 + 1 | 5-axis simultaneous (A-axis 360°, B-axis 115°) | 5-axis simultaneous (A-axis 360°, B-axis 115°); portfolio matrix lists 5 + 1 for loader | 5-axis simultaneous (A +/-30°, B 360°; X/Y/Z 167/200/90 mm) | 5-axis simultaneous (A +/-30°, B 360°) | 5-axis simultaneous (A 360°, B +33° per manufacturer table) | 5-axis (per store title) | Not published | 3+2-axis per manufacturer; store lists 5-axis | 5-axis | 5-axis | 5-axis | 5-axis |
| Disc changer | No disc changer | 8-slot automatic, RFID | No disc changer (manual 1-fold blank holder, quick clamping system) | 7-fold automatic blank changer (changeable blank magazine) | No disc changer (manual 1-fold blank holder) | 12-fold automatic blank changer | Not listed | Yes: automatic disc changer, up to 12 discs (store: up to 12 discs plus blocks); pre-loadable material adapters optional | Not listed | Not listed | Not published | Not published | Single disc (manufacturer lists 1 disc, 0 blocks) | Not published | Yes: 18-disc automatic changer, material switch time up to 40 seconds (manufacturer) | No disc changer (store feature listing: NO-DISC CHANGER) |
| Cabinet / table | Not included | Not included: base cabinet SKU 485198 | Base: closed monoblock cast body (aluminium cast per portfolio matrix); optional machine table T0, 422 x 900 x 540 mm | Base: closed monoblock cast body (aluminium cast per portfolio matrix); optional machine table T250 (T2), 790 x 900 x 598 mm | Base: polymer concrete; optional machine table | Base: polymer concrete; optional machine table | Not published | Not published | Not published | Not published | Not published | Enclosed benchtop (store) | Not published | Not published | Not published | Not published |
| Holder type | C-clamp (half-open blank holder) / block holder | C-clamp (half-open blank holder) / block holder | Standard closed blank holder; C-Clamp (optional); single holder (optional); 6-fold glass ceramic (optional); pre-milled (optional); also 1-fold universal adapter, 3-fold glass ceramics fixture, 6-fold pre-milled abutment holder, Baltic Denture holder | Closed blank holder; 3-fold glass holder; 6-fold holder; 6-fold pre-milled CoCr abutment holder (dry materials) | Closed blank holder; C-Clamp half-open holder (5-axis up to 90°rees, end face machining); 1-fold universal adapter with glass ceramics fixture and pre-milled universal holder; 3-fold glass ceramics fixture; 6-fold glass ceramics adapter; 6-fold pre-milled abutment holder; Baltic Denture holder; zero point clamping system standard (per series page) | Closed blank holder; C-Clamp half-open holder (5-axis up to 90°rees, end face machining); 1-fold universal adapter with glass ceramics fixture and pre-milled universal holder; 3-fold glass ceramics fixture; 6-fold glass ceramics adapter; 6-fold pre-milled abutment holder; Baltic Denture holder; zero point clamping system standard (per series page) | Standard: discs 10-30 mm high, 98.5 mm diameter; blocks up to 40x20x20 mm. BK-1 clamp (switch between six block sizes) for block materials | Discs 10-30 mm high, 98.5 mm diameter; blocks up to 40x20x20 mm; BK-1 Clamp for block materials (optional) | Discs 10-30 mm high, 98.5 mm diameter; blocks up to 40x20x20 mm; BK-1 Clamp for block materials (optional) | Not published | Exclusive 1/3 holder, boosts output 20% per block | Discs 98 mm diameter, 10-30 mm thickness (standard dental disc formats) | C-clamp adapter (manufacturer) | Not published | Not published | Not published |
| 98 mm disc / Cerec mandrel | Not published | Not published | Store listing size: 98mm. Manufacturer pages do not state a 98 mm disc or Cerec mandrel option. | Store listing size: 98mm. Manufacturer page does not state a 98 mm disc or Cerec mandrel option. | Not published | Not published | Discs 98.5 mm diameter, 10-30 mm height | Discs 98.5 mm diameter, 10-30 mm height | Discs 98.5 mm diameter, 10-30 mm height | Not published | Not published | 98 mm diameter, 10-30 mm thickness | 98 mm (3.86 in) discs (store) | 98 mm (3.86 in) discs (store) | Not published | Not published |
| C-clamp option | Yes | Yes | Yes | Not listed | Yes | Yes | Yes | Yes | Yes | Not published | Not published | Not published | Yes | Not published | Not published | Not published |
Spindle, tools and accuracy | ||||||||||||||||
| Spindle power | 800 W | 1.8 kW | 860 W (0.86 kW) | 750 W | 1.0 kW | 1.0 kW | 900 W max, 350 W continuous (S1) | Peak 900 W, nominal (S6) 500 W, continuous (S1) 350 W | Peak 800 W, continuous (S1) 450 W (German high-frequency spindle) | Not published | 800W (manufacturer 500D/500DS page) | 800 W | Peak 1500 W, nominal 800 W (manufacturer) | Not published | Not published | Not published |
| Spindle cooling | Air-cooled | Water-cooled | Not published | Not published | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published |
| Spindle speed | 60,000 rpm | 60,000 rpm | 100,000 rpm | 100,000 rpm | 60,000 rpm | 60,000 rpm | Up to 60,000 rpm (max feed rate 3000 mm/min) | Up to 60,000 rpm (max feed rate 3000 mm/min) | Up to 60,000 rpm (max feed rate 3000 mm/min) | Not published | 60,000 RPM German spindle | 0 to 60,000 rpm | Up to 60,000 rpm | 60,000 rpm (store) | 60,000 rpm (store) | Not published |
| Collet / shank | Ø4 mm | Ø6 mm | 3 mm tool shaft (milling and grinding tools) | 3 mm | 6 mm tool shaft | 6 mm tool shaft | 4.0 mm spindle clamping diameter | 4.0 mm tool holding | 4.0 mm tool holding | Not published | Not published | 4 mm diameter burs | Stainless steel collet, C-clamp (manufacturer) | Not published | Not published | Not published |
| Accuracy | 0.01 mm processing accuracy | 5 µm repeat positioning | Tool length control 0.002 mm or better | Tool length control 0.002 mm or better | Tool length control 0.002 mm or better | Tool length control 0.002 mm or better | Not published | Not published | Not published | Not published | Digital servo system with high resolution (no figure published) | Not published | Not published | Not published | +/-0.05 mm margin control, material loss rate up to 2% (manufacturer) | Not published |
| Tool magazine | 10 tools | 10 tools, automatic change | 10-fold automatic tool changer | 16-fold tool changer (magazine interchangeable) | 20-fold tool changer | 20-fold tool changer | 11-tool automatic changer | 11-tool magazine with length measurement and breakage monitoring | 13-tool magazine with length measurement and breakage monitoring | Not published | Automatic tool changer; 6 built-in burs (store) | Automatic tool changer; 10 milling burs | 10 (manufacturer); USDD store page and Yucera price list table say 13 | 13 (store only; no manufacturer page found for this model) | 12 (AI tool wear prediction, automatic switch to backup tools) | Not published |
| Tool sourcing (manufacturer-required or open OEM) | Not published | Not published | Not published | Not published | Not published | Not published | UP3D standard bur set included (6 burs: 4 zirconia, 2 PMMA) with custom 0.3 mm and 0.6 mm tools; optional additional burs from UP3D. Whether third-party tools are accepted is not published | UP3D standard bur set included; custom 0.3 mm and 0.6 mm tools and optional additional burs from UP3D. Third-party tool acceptance not published | UP3D standard bur set included (6 burs: 3 zirconia, 3 PMMA) with custom 0.3 mm and 0.6 mm tools; optional additional burs from UP3D. Third-party tool acceptance not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published |
Materials milled | ||||||||||||||||
| Zirconia | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Not published | Yes | Yes | Yes | Yes | Yes | Yes |
| Glass ceramic / glass blocks | Not listed | Not listed | Not listed | Yes | Yes | Yes | Not listed | Not listed | Not listed | Not published | Not published | Not listed | Not listed | Not listed | Not listed | Not listed |
| PMMA | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Not published | Yes | Yes | Yes | Not published | Yes | Not published |
| PEEK | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Not published | Yes | Yes | Yes | Not listed | Yes | Not listed |
| Wax | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Not published | Yes | Yes | Yes | Yes | Yes | Yes |
| Composite resin | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Not published | Not published | Yes | Yes | Yes | Not published | Yes |
| Pre-milled blanks | Not listed | Not listed | Yes | Yes | Yes | Yes | Not listed | Not listed | Not listed | Not published | Not published | Not listed | Not listed | Not listed | Not listed | Not listed |
| Titanium | Not listed | Not listed | Not listed | Not listed | Yes | Yes | Not listed | Not listed | Not listed | Not published | Not published | Not listed | Not listed | Not listed | Not listed | Not listed |
| Titanium bars (implant bar) | Not listed | Not listed | Not published | Not published | Not published | Not published | Not listed | Not listed | Not listed | Not published | Not published | Not listed | Not listed | Not listed | Not listed | Not listed |
| Chrome cobalt (CoCr) | Not listed | Not listed | Yes | Not listed | Yes | Yes | Yes | Yes | Yes | Not published | Not published | Not listed | Not listed | Not listed | Not listed | Not listed |
Room and utilities | ||||||||||||||||
| Water cooling | N/A, dry machine | N/A, dry machine | Not published | Not published | 4.8 liter integrated cooling tank | 4.8 liter integrated cooling tank | Dry machine, no water system | Dry machine, no water system | Dry machine, no water system | Not published | Dry machine | Dry machine | Not published | Not published | Not published | Not published |
| Air requirements | No compressed air needed | Not published | External compressed air required: 3 bar @ 50 l/min | External compressed air required: 7 bar @ 60 l/min | External compressed air required: 6.5 - 9.0 bar @ 80 l/min | External compressed air required: 6.5 - 9.0 bar @ 80 l/min | Compressed air required: tool change above 0.5 MPa, spindle cooling air 0.15 to 0.20 MPa | Compressed air required: 0.5-0.8 MPa, consumption 60 L/min | No compressed air needed (manufacturer: no external air supply, 'high-frequency spindle, automatic tool change, no air cooling required') | Not published | No compressor needed (store: compressor-free version) | Required air pressure 4.5-7.5 bar, compressed air flow about 50 L/min | 4.5-7.5 bar, oil-free, without water (manufacturer) | External compressed air supply required (store); machine has no built-in air compressor | Not published | About 50 L/min at 6 bar |
| Dust extraction / vacuum | Not included: V9 (SKU 485204) | Not included: V9 (SKU 485204) | No integrated extraction listed; optional external extraction (iVAC silent 160 m3/hr and iVAC silent PRO 240 m3/hr listed as suitable for 150i; iVAC eco+ and iVAC PRO+ also listed) | No integrated extraction listed; optional external extraction (iVAC eco+ 260 m3/hr, iVAC PRO+ 280 m3/hr listed) | No integrated extraction listed; optional external extraction (iVAC silent PRO, iVAC eco+, iVAC PRO+ listed as suitable) | No integrated extraction listed; optional external extraction (iVAC silent PRO, iVAC eco+, iVAC PRO+ listed as suitable) | Dust extractor is an optional add-on (recommended for resin). Sliding dust cover protects the lead screw and moving parts. Store: V10 Smart Dental Vacuum / dust collector available on request | Dust extraction: filter level M, flow rate 3500 L/min (extractor optional add-on); built-in ionizer for resin milling | Dust extraction: filter level M, flow rate 2500 L/min (extractor optional add-on); built-in ionizer; silicone dust shield | Dust collector included (per store title) | Advanced dust-proof system, integrated ionizer; external vacuum linkage | Minimum dust suction volume about 3000 L/min (external vacuum such as GSM V0) | Not published | Not published | Not published | Ceramill Airstream dust collector unit included in this package (110 V, # 178600) |
| Power supply | 220V / 1.8 kW (110V to 220V transformer: SKU 485203) | 220V (110V to 220V transformer: SKU 485203) | Store: 220v; manufacturer: 100 V - 240 V, 50/60 Hz | Store: 100-240V; manufacturer: 100 V - 240 V, 50/60 Hz, 750 W | Store: 220v; manufacturer: mains voltage 'different for type of machines in series' (no figure published) | Store: 220v; manufacturer: mains voltage 'different for type of machines in series' (no figure published) | 100-120 V AC / 200-240 V AC (selectable), 50/60 Hz; maximum power 1.1 kW. Store lists 110 V | AC 100-240 V, 50-60 Hz; 0.55 kW. Store lists 110 V | AC 200-240 V, 50/60 Hz; 750 W. Store lists 110 V | Store title says 220v; store spec table says 110v | 220V / 1KW | 1500 W; 220-230 V AC, 50/60 Hz | 220-230 V, 800 W nominal (manufacturer); store: 220 V | 220 V (store) | 220 V (store) | 110 V |
| Dimensions / weight | 523 x 718 x 820 mm, 130 kg | 808 x 750 x 881 mm, 180 kg | Manufacturer: 422 x 556 x 644 mm (W x D x H), 75 kg. Store listing: width 400, height 550, length 605 | 790 x 613 x 724 mm (W x D x H), 110 kg | 758 x 790 x 857 mm (W x D x H), 180 to 210 kg (PRO/PRO+ range) | 1058 x 790 x 857 mm (W x D x H), 225 to 255 kg (Loader PRO/PRO+ range) | 444 x 719 x 630 mm (W/D/H), 87 kg | 719 x 872 x 639 mm, 138 kg | 442 x 595 x 704 mm, 106 kg | Not published | 700 x 480 x 645 mm (D x W x H), 90 kg | 530 x 650 x 760 mm, 145 kg (store text says about 120 kg) | Manufacturer: 530 x 650 x 750 mm with flap and drawer open, footprint 480 x 580 mm, 145 kg. Store: 650 x 530 x 775 mm, 195 kg | 650 x 530 x 775 mm (25.59 x 20.87 x 30.51 in), 195 kg (store) | 730 x 932 x 855 mm (W/D/H 932 x 730 x 855 mm per manufacturer, with open flap and drawer), 260 kg; store and manufacturer agree | Not published |
| Installation | Not published | Not published | Not published | Not published | Not published | Not published | Installation, commissioning and operator onboarding from US Dental Depot (store) | Not published | Not published | Not published | Plug-and-play, no air lines needed (manufacturer) | Not published | Not published | Not published | Not published | Not published |
Software | ||||||||||||||||
| CAM options | Not published | Not published | iCAM V5 (eco dry for 150i dry; eco, smart, smart expert) and iCAMHD (eco dry for 150i dry; eco for 150i PRO); no external PC required, integrated Windows PC with SmartControl | iCAM V5 (eco, smart, smart expert) and iCAMHD eco; SmartControl integrated CNC software, no external PC required | iCAM V5 (smart, smart expert); Remote Dental 3.0 control software, integrated CNC, 15 inch HD touchscreen | iCAM V5 (smart, smart expert); Remote Dental 3.0 control software, integrated CNC, 15 inch HD touchscreen | UPCAM and Millbox supported; UPCNC and standard UPCAM included, UPCAM Advanced optional | UPCAM (standard version included; Advanced optional); UPCAM / Millbox per store; network interface; MillMind and DentalStation remote control | UPCAM (global license, no extra fees, per manufacturer); store: MillMind remote | Hyperdent or Millbox included (per store title) | Open platform CAM | Open CAM input | Not published | Not published | Not published | DNA milling/grinding strategies (Amann Girrbach); CAM software not named on the store page |
Throughput, warranty and price | ||||||||||||||||
| Time per crown | Not published | ~1.6× throughput vs manual disc-change | Not published | Not published | Not published | Not published | Not published | Coping: zirconia 10 min, wax 4.5 min. Crown: zirconia 13 min, wax 5.5 min | Coping: zirconia 10 min, wax 4.5 min. Crown: zirconia 13 min, wax 5.5 min | Not published | Crown: zirconia 16 min, wax 6 min; coping zirconia 11 min, wax 5 min (500D milling Aconia HT+ 14 mm, per manufacturer 500D/500DS page) | Not published | Full crown < 15 min, 3-unit bridge < 30 min (manufacturer) | Not published | Not published | Not published |
| Warranty | 1 year, parts only | 1 year, parts only | Not published | Not published | Not published | Not published | UP3D: 1 year, parts and labor. Store page cites 2 years: term confirmed in writing before purchase | UP3D: 1 year, parts and labor. Store page also cites 2 years, USDD warrants 1 year from invoice date | UP3D: 1 year, parts and labor | Term not published by BSM. Parts warranty, term confirmed in writing | Term not published by Besmile. Parts warranty, term confirmed in writing | 12 months (Gusrom FAQ) | Not published | Not published | Not published | 1 year from purchase (store). Amann Girrbach publishes no warranty policy |
| Price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price |
On “time per crown”: manufacturers do not publish a comparable per-crown cycle time, and we will not invent one. Real cycle time depends on the material, the disc, the CAM strategy, the tool set and the margin detail. Tell us what you mill and we will give you a realistic figure from labs running the same work. Call 954-874-6325.
What the processing mode means in practice, before you compare individual models.
These models list an automatic disc or blank changer, so a queue can run through the night.

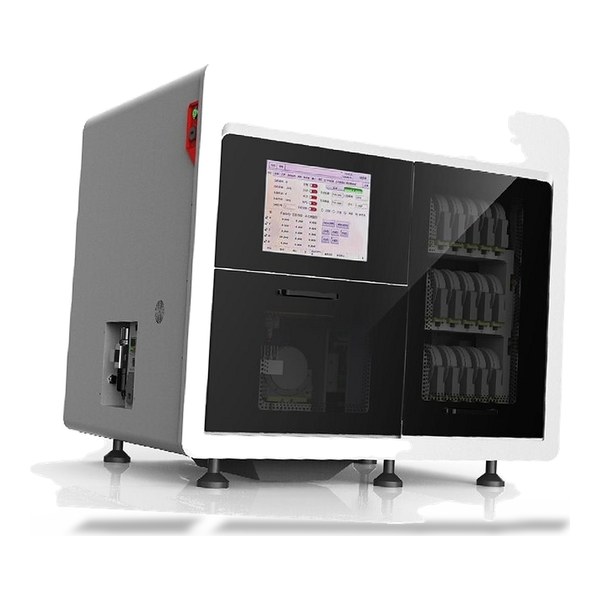

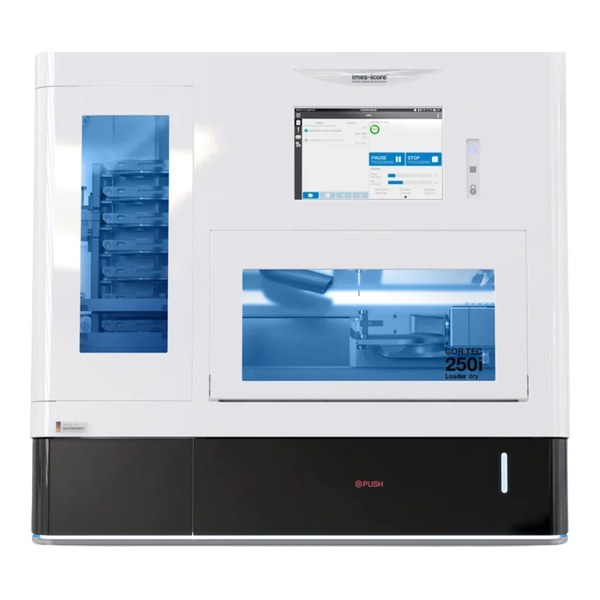

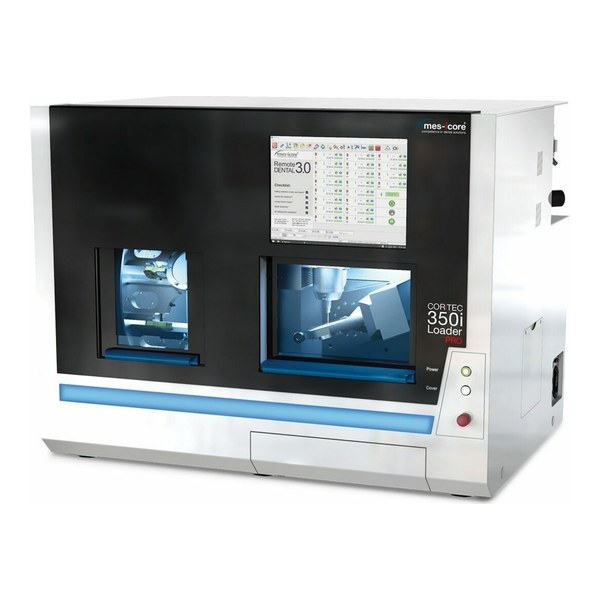

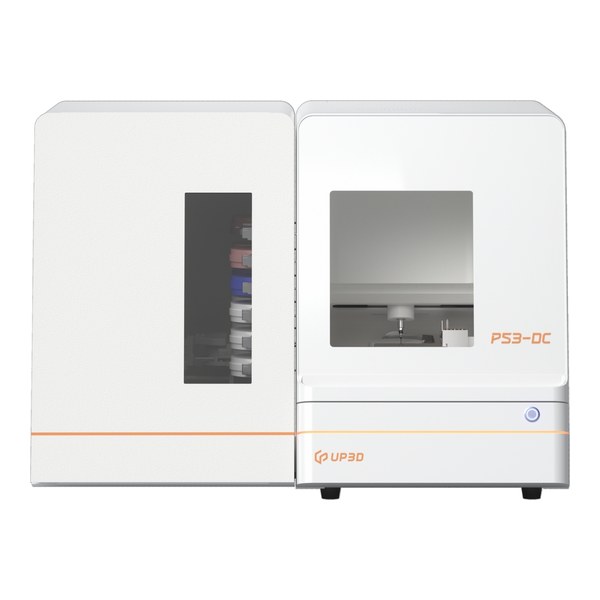

DEPRAG D5 Max, iMES iCORE CORiTEC 250i Loader dry, iMES iCORE CORiTEC 350i Loader PRO ION, UP3D P53DC, YUCERA YRC-9PRO
These models list titanium among the materials they mill.

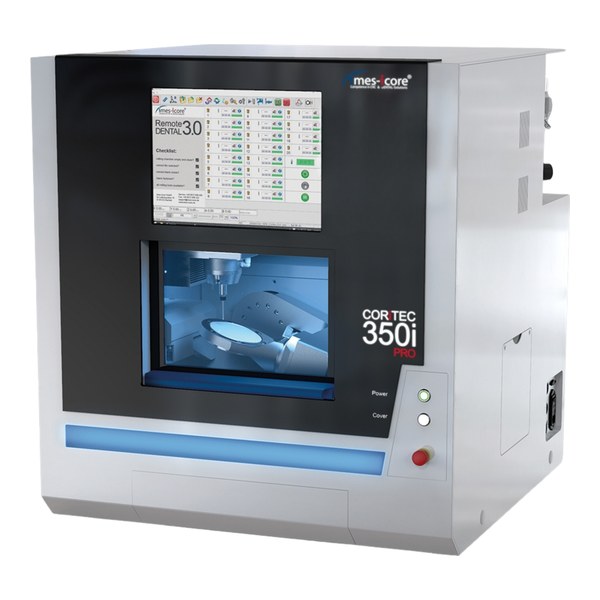

iMES iCORE CORiTEC 350i PRO ION, iMES iCORE CORiTEC 350i Loader PRO ION
These models list glass ceramic among the materials they mill.
iMES iCORE CORiTEC 250i Loader dry, iMES iCORE CORiTEC 350i PRO ION, iMES iCORE CORiTEC 350i Loader PRO ION
These models state that no compressed air is needed.

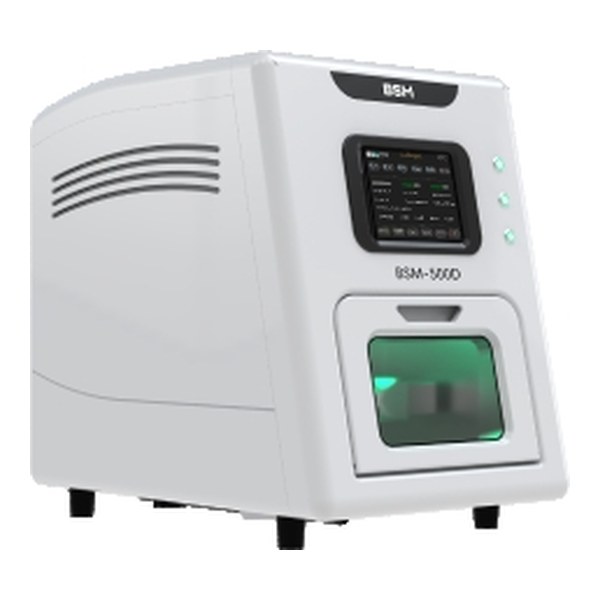

DEPRAG D5 Air Free, UP3D P55D, BSM 500DS
Send us your materials, case volume and room details. We recommend the right model and quote it in writing the same day.
Where the store listing, the manufacturer site or a brochure disagree, we show the conflict instead of picking a number silently. Confirm anything critical with us in writing before you order.
Milling machine pricing depends on configuration: voltage, cabinet, cooling, dust extraction and software all change the number. Rather than publish a figure that will not match your build, we quote in writing. Request a quote or call 954-874-6325 and you get a real price the same day.
DEPRAG, iMES iCORE, UP3D, BSM, Gusrom, YUCERA, Amann Girrbach. Every dry milling unit in the US Dental Depot CAD/CAM milling-units catalog is in the table, including voltage and open-box variants where they exist.
By the processing mode and materials the manufacturer or our store listing publishes. Where the store listing and the manufacturer disagree, the Data Notes section below the table says so, model by model.
Yes. Delivery, installation and operator training are arranged by US Dental Depot and quoted with the machine, so the full cost is on the quote before you commit. Call 954-874-6325.
It differs by brand and model. The Power supply row shows what each manufacturer or store listing publishes. Confirm your available supply with us before ordering.
Tell us the materials you mill and the volume you run. We will come back with the right model and a written price the same day.
