One machine for zirconia and PMMA dry, glass ceramic wet, and titanium. This page lines up every dry-and-wet milling unit we stock that lists titanium, from every brand, so you can compare them before you ask for pricing.
The 16 dry, wet and titanium mills compared below
DEPRAG, iMES iCORE, UP3D, BSM, YUCERA
Every specification below comes from the manufacturer or our store listing for that exact model. A field that nobody publishes reads “Not published”, never a guess. Click a photo to open the machine on the store. Pricing is configuration-dependent: call or request a quote and we send a written figure the same day.

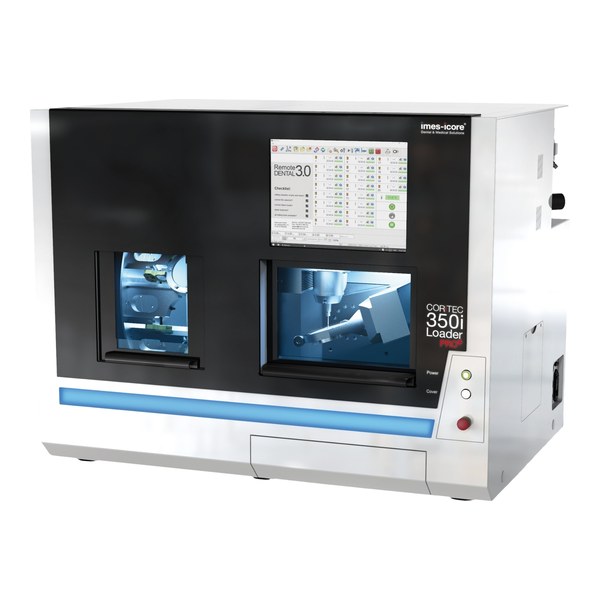

| Characteristic | DEPRAGW5 | DEPRAGW5 Pro | DEPRAGW5 Max | iMES iCORECORiTEC 250i PRO+ | iMES iCORECORiTEC 250i Loader PRO+ | iMES iCORECORiTEC 350i PRO | iMES iCORECORiTEC 350i Loader PRO | iMES iCORECORiTEC 350i PRO+ | iMES iCORECORiTEC 350i Loader PRO+ | iMES iCORECORiTEC 350i X PRO | iMES iCORECORiTEC 350i Loader X PRO | iMES iCORECORiTEC 650i PRO (380V) | iMES iCORECORiTEC 650i Loader PRO (380V) | UP3DIRON CORE i5 PRO | BSM500DW | YUCERAYRC-8PRO |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Machine | ||||||||||||||||
| USDD SKU | 485196 | 485193 | 485194 | 488650 | 488654 | 488659 | 488661 | 488665 (230V) 488666 (115V) | 488667 (230V) 488668 (115V) | 488684 (230V) | 488685 | 488706 (380V) | 488707 (380V) | 492162 | 496272 | 496297 |
| Processing mode | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet |
| Axes | 5-axis | 5-axis | 5-axis | 5-axis simultaneous (A-axis 360°, B-axis up to +/-30°) | 5-axis simultaneous (A-axis 360°, B-axis up to +/-30°); portfolio matrix lists 5 + 1 for loader | 5-axis simultaneous (A-axis 360°, B-axis 115°) | 5-axis simultaneous (A-axis 360°, B-axis 115°); portfolio matrix lists 5 + 1 for loader | 5-axis simultaneous (A-axis 360°, B-axis 115°) | 5-axis simultaneous (A-axis 360°, B-axis 115°); portfolio matrix lists 5 + 1 for loader | 5-axis simultaneous (A-axis 360°, B-axis 115°) | 5-axis simultaneous (A-axis 360°, B-axis 115°); portfolio matrix lists 5 + 1 for loader | 5-axis simultaneous (A-axis 360°, B-axis 130°) | 5-axis simultaneous (A-axis 360°, B-axis 130°); portfolio matrix lists 5 + 1 for loader | 5-axis (A +/-360°, B +/-30° per store) | Not published | 5-axis |
| Disc changer | No disc changer | No disc changer | 8-slot automatic, RFID, 8 discs | Manual; 6-blank Loader version available | 6-blank automatic blank changer (Loader) | Manual; 12-blank Loader version available | 12-blank automatic blank changer (Loader) | Manual; 12-blank Loader version available | 12-blank automatic blank changer (Loader) | No disc changer (manual 1-fold blank holder) | 15-fold automatic blank changer | Manual; 16-blank Loader version available | 16-blank automatic blank changer (Loader) | Not published | Not published | Single disc (manufacturer lists 1 disc, 6+3 blocks) |
| Cabinet / table | Included | Included | Included | Benchtop; optional stand | Benchtop; optional stand | Industrial stand / cabinet | Industrial stand / cabinet | Industrial stand / cabinet | Industrial stand / cabinet | Base: polymer concrete; optional machine table 758 x 790 x 900 mm | Base: polymer concrete; optional machine table 1058 x 790 x 900 mm | Industrial floor-standing | Industrial floor-standing | One-piece solid cast-iron machine bed; 15 inch touchscreen | Not published | Not published |
| Holder type | C-clamp / pre-mill abutment holder / block holder | C-clamp / pre-mill abutment holder / block holder | C-clamp / pre-mill abutment holder / block holder | Modular blank holders | Modular blank holders | Precision blank holders | Precision blank holders | Precision blank holders | Precision blank holders | Closed blank holder; C-Clamp half-open holder (5-axis up to 90°rees, end face machining); 1-fold universal adapter with glass ceramics fixture and pre-milled universal holder; 3-fold glass ceramics fixture; 6-fold glass ceramics adapter; 6-fold pre-milled abutment holder; new Power Clamp zero-point clamping system (4 times higher clamping force) | Closed blank holder; C-Clamp half-open holder (5-axis up to 90°rees, end face machining); 1-fold universal adapter with glass ceramics fixture and pre-milled universal holder; 3-fold glass ceramics fixture; 6-fold glass ceramics adapter; 6-fold pre-milled abutment holder; new Power Clamp zero-point clamping system (4 times higher clamping force) | Industrial precision holders | Industrial precision holders | Dedicated holders for discs, blocks and titanium rods: disc 98.5 mm diameter, 10-30 mm; block max 40x20x20 mm; dual-side supported clamping; BK-1 Block Holder and TK abutment holder (6-position) options | Exclusive 1/3 holder increases zirconia disc capacity by 20% or more | Standard C-clamp, block holder, premill abutment holder (3 fixtures standard) |
| 98 mm disc / Cerec mandrel | Not published | Not published | 98 mm disc holders. Cerec mandrel: not published | Yes | Yes | Yes | Yes | Yes | Yes | Not published | Not published | Yes | Yes | Disc 98.5 mm diameter, 10-30 mm height (store) | Not published | Not published |
| C-clamp option | Yes | Yes | Yes | Available | Available | Available | Available | Available | Available | Yes | Yes | Available | Available | Not published | Not published | Yes |
Spindle, tools and accuracy | ||||||||||||||||
| Spindle power | 2.5 kW | 2.5 kW · 398 Ncm | 3.0 kW | 1,400 W | 1,400 W | 1,000 W | 1,000 W | 2,600 W | 2,600 W | 3.0 kW | 3.0 kW | 5,700 W | 5,700 W | 2.5 kW water-cooled spindle (manufacturer and store comparison) | 1370W (manufacturer technical data); store title says 800W | 2.5 kW |
| Spindle cooling | Water-cooled | Water-cooled | Water-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Water-cooled | Water-cooled | Not published | Not published | Water-cooled | Water-cooled | Water-cooled | Air-cooled | Water-cooled |
| Spindle speed | 60,000 rpm | 60,000 rpm | 60,000 rpm | 60,000 rpm | 60,000 rpm | 60,000 rpm | 60,000 rpm | 60,000 rpm | 60,000 rpm | 60,000 rpm | 60,000 rpm | 50,000 rpm | 50,000 rpm | Up to 60,000 rpm (store) | 80,000 RPM German spindle | 60,000 rpm |
| Collet / shank | Ø6 mm | Ø6 mm | Ø6 mm | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm tool shaft | 6 mm tool shaft | 6 mm, HSK-E25 holder | 6 mm, HSK-E25 holder | Holder 6.0 mm diameter (store) | Not published | 6 mm collet (manufacturer) |
| Accuracy | Not published | 0.01 mm tool-setting; auto-calibration error under 0.003 mm | 5 µm repetition accuracy | Tool-length measurement 2 µm or better (not a guaranteed restoration accuracy) | Tool-length measurement 2 µm or better (not a guaranteed restoration accuracy) | Tool-length measurement 2 µm or better (not a guaranteed restoration accuracy) | Tool-length measurement 2 µm or better (not a guaranteed restoration accuracy) | Tool-length measurement 2 µm or better (not a guaranteed restoration accuracy) | Tool-length measurement 2 µm or better (not a guaranteed restoration accuracy) | Tool length control 0.002 mm or better | Tool length control 0.002 mm or better | Tool-length measurement 2 µm or better (not a guaranteed restoration accuracy) | Tool-length measurement 2 µm or better (not a guaranteed restoration accuracy) | Not published | Not published | +/-0.05 mm (manufacturer) |
| Tool magazine | 18×2 tools, dual dry/wet | 24×2 tools, dual dry/wet | 24 tools, automatic change | 10 tools, automatic change | 10 tools, automatic change | 20 tools, automatic change | 20 tools, automatic change | 20 tools, automatic change | 20 tools, automatic change | 20-fold tool changer (exchangeable tool magazine) | 20-fold tool changer (exchangeable tool magazine) | 32 tools, automatic change | 32 tools, automatic change | 18-tool magazine with length measurement and breakage monitoring (store); 18-tool capacity per manufacturer | 13-bur automatic changer with smart monitoring | 18 (automatic tool changer with AI wear monitoring) |
| Tool sourcing (manufacturer-required or open OEM) | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | UP3D milling burs matched per material (titanium, CoCr, zirconia, resin, glass ceramic); 9 burs for titanium disc included; optional additional burs. Third-party tool acceptance not published | Manufacturer lists burs: zirconia phi4x(2/1/0.6) ball and phi4x1 end mill; resin phi4x(2/1); glass ceramic phi4x(2.5/1/0.6); metal phi4x(3.0/1.5/1.0) ball and phi4x3 bull mill. Third-party acceptance not published | Not published |
Materials milled | ||||||||||||||||
| Zirconia | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Glass ceramic / glass blocks | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PMMA | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Not published | Yes |
| PEEK | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Not published | Yes |
| Wax | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Not published | Yes |
| Composite resin | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Not published | Not listed |
| Pre-milled blanks | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Not published | Yes |
| Titanium | Yes | Yes | Yes | Yes, discs and pre-milled | Yes, discs and pre-milled | Pre-milled Ti; full-disc capability to be verified | Pre-milled Ti; full-disc capability to be verified | Pre-milled Ti; full-disc capability to be verified | Pre-milled Ti; full-disc capability to be verified | Yes | Yes | Yes, discs and pre-milled | Yes, discs and pre-milled | Yes | Yes | Yes |
| Titanium bars (implant bar) | Yes | Yes | Yes | Config: needs the right holder, tooling and CAM strategy | Config: needs the right holder, tooling and CAM strategy | Config: confirm the specific version | Config: confirm the specific version | Config: confirm the specific version | Config: confirm the specific version | Not published | Not published | Yes | Yes | Yes | Not published | Not published |
| Chrome cobalt (CoCr) | Not listed | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Not published | Not listed |
Room and utilities | ||||||||||||||||
| Water cooling | Water cooling system + 10 L tank included | Water cooling system + tank included | Water cooling system + tank included | Integrated 3.7 L tank | Integrated 3.7 L tank | Integrated 4.8 L tank | Integrated 4.8 L tank | Integrated 4.8 L tank | Integrated 4.8 L tank | 3.7 l (0.98 gal US) integrated tank; cooling pump with threefold power | 3.7 l (0.98 gal US) integrated tank; cooling pump with threefold power | Integrated 18 L tank | Integrated 18 L tank | Integrated cooling system with scaled coolant tank and refill cup (manufacturer) | External control linkage for vacuum and water pump; wet mode switch takes 30 minutes (tank size not published) | Water cooling; 10 L water tank; hydrophobic drainage design (manufacturer) |
| Air requirements | > 0.5 MPa (72.5 psi), > 90 L/min | > 0.5 MPa (72.5 psi), > 100 L/min | > 0.65 MPa (94 psi), > 10 L/min | 7 bar, 60 L/min | 7 bar, 60 L/min | 6.5-9 bar, 80 L/min | 6.5-9 bar, 80 L/min | 6.5-9 bar, 80 L/min | 6.5-9 bar, 80 L/min | External compressed air required: 6.0 - 9.0 bar @ 80 l/min | External compressed air required: 6.0 - 9.0 bar @ 80 l/min | 6.5-9 bar, 150 L/min | 6.5-9 bar, 150 L/min | Store: air 0.6-0.9 MPa | Air pressure above 0.65 MPa | 6 bar required air pressure (manufacturer) |
| Dust extraction / vacuum | Not included: V9 (SKU 485204) | Not included: V9 (SKU 485204) | Not included: V9 (SKU 485204). Vacuum cleaning system listed as an expansion | External extraction required (recommended: iVAC silent / silent PRO) | External extraction required (recommended: iVAC silent / silent PRO) | External extraction required (recommended: iVAC silent PRO) | External extraction required (recommended: iVAC silent PRO) | External extraction required (recommended: iVAC silent PRO) | External extraction required (recommended: iVAC silent PRO) | No integrated extraction listed; optional external extraction (iVAC eco+, iVAC PRO+ listed) | No integrated extraction listed; optional external extraction (iVAC eco+, iVAC PRO+ listed) | Industrial external extraction required (confirm specified model) | Industrial external extraction required (confirm specified model) | Full-cover silicone sealing for dust and coolant; optional dust extractor add-on | Built-in electrostatic precipitator (ESP); external vacuum linkage | Not published |
| Power supply | 220V / 3.2 kW (110V to 220V transformer: SKU 485203) | 220V / 3.5 kW (110V to 220V transformer: SKU 485203) | 220V / 3.5 kW (110V to 220V transformer: SKU 485203) | 100-240 V, 50/60 Hz | 100-240 V, 50/60 Hz | Varies by configuration (store lists 220V; 115V SKUs exist) | Varies by configuration (store lists 220V; 115V SKUs exist) | Varies by configuration (store lists 220V; 115V SKUs exist) | Varies by configuration (store lists 220V; 115V SKUs exist) | Store: 220v; manufacturer: 100 V - 240 V, 50/60 Hz | Store: 220v; manufacturer: 100 V - 240 V, 50/60 Hz | 400 V, 3-phase, 50/60 Hz (store lists 380V) | 400 V, 3-phase, 50/60 Hz (store lists 380V) | Store: 220 VAC, 50-60 Hz | 220v / 1KW | Single-phase 220 V 50/60 Hz, total power 3.7 kW (manufacturer); store: 220 V |
| Dimensions / weight | 523 x 718 x 820 mm, 130 kg | 685 x 730 x 1750 mm, 300 kg | 834 x 810 x 1767 mm, 500 kg (varies with accessories) | 591 x 613 x 724 mm, 95 kg (209 lb) | 591 x 613 x 724 mm, 95 kg (209 lb) | 758 x 790 x 857 mm, 180-210 kg (397-463 lb) | 758 x 790 x 857 mm, 180-210 kg (397-463 lb) | 758 x 790 x 857 mm, 180-210 kg (397-463 lb) | 758 x 790 x 857 mm, 180-210 kg (397-463 lb) | 758 x 790 x 857 mm (W x D x H), approx. 220 kg | 1058 x 790 x 857 mm (W x D x H), approx. 265 kg | 864 x 1,124 x 1,935 mm, 645 kg (1,422 lb) | 864 x 1,124 x 1,935 mm, 645 kg (1,422 lb) | 660 x 680 x 1750 mm, 480 kg (store) | 480 x 700 x 1400 mm (D x W x H), 150 kg | 525 x 700 x 784 mm (store lists 700 x 525 x 784 mm), 150 kg; both sources agree |
| Installation | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Integrated design for easier deployment; onboarding, training and remote support from UP3D; US Dental Depot installation per store listing of the family | Not published | Not published |
Software | ||||||||||||||||
| CAM options | Supports all common scanners and CAD software | Not published | Hyperdent, Millbox, WorkNC | iCAMHD included; iCAM V5 software listed on series page; SmartControl, integrated Windows PC and touch screen | iCAMHD included; iCAM V5 software listed on series page; SmartControl, integrated Windows PC and touch screen | iCAM V5 (smart, smart expert); Remote Dental 3.0 control software, integrated CNC, 15 inch HD touchscreen | iCAM V5 (smart, smart expert); Remote Dental 3.0 control software, integrated CNC, 15 inch HD touchscreen | iCAM V5 (smart, smart expert); Remote Dental 3.0 control software, integrated CNC, 15 inch HD touchscreen | iCAM V5 (smart, smart expert); Remote Dental 3.0 control software, integrated CNC, 15 inch HD touchscreen | iCAM V5 (smart, smart expert); SmartControl, integrated 15.6 inch Full-HD touchscreen | iCAM V5 (smart, smart expert); SmartControl, integrated 15.6 inch Full-HD touchscreen | iCAM V5 and iCAM HD (hyperDENT based; 3-month free trial); iNC integrated CNC software, 15.6 inch touchscreen | iCAM V5 and iCAM HD (hyperDENT based; 3-month free trial); iNC integrated CNC software, 15.6 inch touchscreen | UPCAM (standard version included) with Implant Module; UPCNC; Millbox (store) | Not published | Not published |
Throughput, warranty and price | ||||||||||||||||
| Time per crown | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published |
| Warranty | 1 year, parts only | 1 year, parts only | 24 months on core non-destructive parts (manufacturer). Store page lists 1 year, parts only | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Pre-release: 12 months or 2,000 operating hours. USDD warrants 1 year from invoice date | Term not published by Besmile. Parts warranty, term confirmed in writing | Not published |
| Price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price |
On “time per crown”: manufacturers do not publish a comparable per-crown cycle time, and we will not invent one. Real cycle time depends on the material, the disc, the CAM strategy, the tool set and the margin detail. Tell us what you mill and we will give you a realistic figure from labs running the same work. Call 954-874-6325.
What the processing mode means in practice, before you compare individual models.
These models list an automatic disc or blank changer, so a queue can run through the night.
DEPRAG W5 Max, iMES iCORE CORiTEC 250i PRO+, iMES iCORE CORiTEC 250i Loader PRO+, iMES iCORE CORiTEC 350i PRO, iMES iCORE CORiTEC 350i Loader PRO, iMES iCORE CORiTEC 350i PRO+, iMES iCORE CORiTEC 350i Loader PRO+, iMES iCORE CORiTEC 350i Loader X PRO and 2 more
These models list titanium among the materials they mill.
DEPRAG W5, DEPRAG W5 Pro, DEPRAG W5 Max, iMES iCORE CORiTEC 350i X PRO, iMES iCORE CORiTEC 350i Loader X PRO, UP3D IRON CORE i5 PRO, BSM 500DW, YUCERA YRC-8PRO
These models list 5-axis machining, which reaches undercuts and abutment geometries that 4-axis cannot.
DEPRAG W5, DEPRAG W5 Pro, DEPRAG W5 Max, iMES iCORE CORiTEC 250i PRO+, iMES iCORE CORiTEC 250i Loader PRO+, iMES iCORE CORiTEC 350i PRO, iMES iCORE CORiTEC 350i Loader PRO, iMES iCORE CORiTEC 350i PRO+ and 7 more
Send us your materials, case volume and room details. We recommend the right model and quote it in writing the same day.
Where the store listing, the manufacturer site or a brochure disagree, we show the conflict instead of picking a number silently. Confirm anything critical with us in writing before you order.
Milling machine pricing depends on configuration: voltage, cabinet, cooling, dust extraction and software all change the number. Rather than publish a figure that will not match your build, we quote in writing. Request a quote or call 954-874-6325 and you get a real price the same day.
DEPRAG, iMES iCORE, UP3D, BSM, YUCERA. Every dry, wet and titanium milling unit in the US Dental Depot CAD/CAM milling-units catalog is in the table, including voltage and open-box variants where they exist.
By the processing mode and materials the manufacturer or our store listing publishes. Where the store listing and the manufacturer disagree, the Data Notes section below the table says so, model by model.
Yes. Delivery, installation and operator training are arranged by US Dental Depot and quoted with the machine, so the full cost is on the quote before you commit. Call 954-874-6325.
It differs by brand and model. The Power supply row shows what each manufacturer or store listing publishes. Confirm your available supply with us before ordering.
Tell us the materials you mill and the volume you run. We will come back with the right model and a written price the same day.
