These machines switch between dry and wet milling. This page lines up the dry-and-wet units we stock whose listings do not include titanium milling, so you can compare them before you ask for pricing.
The 5 dry and wet mills compared below
iMES iCORE, Gusrom, Amann Girrbach
Every specification below comes from the manufacturer or our store listing for that exact model. A field that nobody publishes reads “Not published”, never a guess. Click a photo to open the machine on the store. Pricing is configuration-dependent: call or request a quote and we send a written figure the same day.

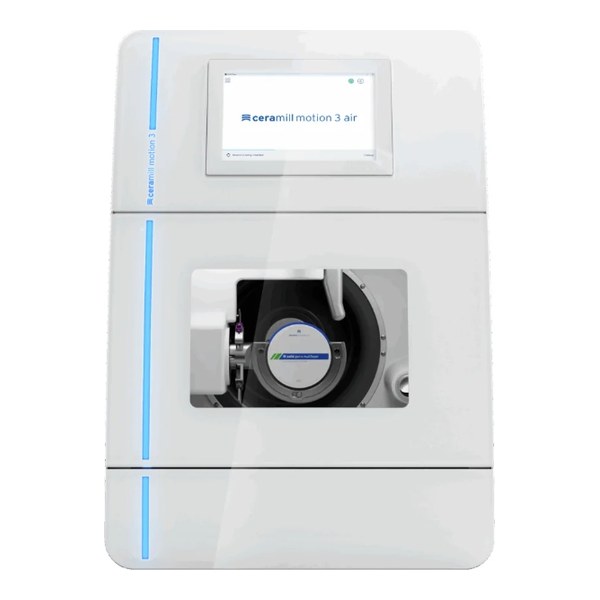

| Characteristic | iMES iCORECORiTEC 150i PRO | GusromGSM 7X | Amann GirrbachCeramill Motion 2 (wet and dry) | Amann GirrbachCeramill Motion 3 | Amann GirrbachCeramill Motion 3 Air |
|---|---|---|---|---|---|
Machine | |||||
| USDD SKU | 488641 | 493801 | Not in the store yet | USDD item 484637 (Amann # 181350) | Not in the store yet |
| Processing mode | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet | Dry & Wet |
| Axes | 5-axis simultaneous (A-axis 360°, B-axis 130°) | 5-axis (linkage) | 5-axis simultaneous | 5-axis simultaneous | 5-axis simultaneous |
| Disc changer | No disc changer (manual 1-fold blank holder, quick clamping system) | Not published | No automatic disc changer | No automatic disc changer | No automatic disc changer |
| Cabinet / table | Benchtop; optional T0 stand | Floor-standing with integrated cabinet base (store) | Benchtop; optional stand or cabinet | Benchtop; optional stand or cabinet | Benchtop; optional stand or cabinet |
| Holder type | Quick-clamping modular holders | Open CAM input accepts standard dental discs and blocks | Disc and block holders, including C-Clamp | Disc and block holders, including C-Clamp | Disc and block holders, including C-Clamp |
| 98 mm disc / Cerec mandrel | Yes | Not published | Supported with compatible holder (98 mm blank holder 181360) | Supported with compatible holder (98 mm blank holder 181360) | Supported with compatible holder (98 mm blank holder 181360) |
| C-clamp option | Optional | Not published | Yes | Yes | Yes |
Spindle, tools and accuracy | |||||
| Spindle power | 860 W | Not published | 750 W rated output | 750 W rated output | 750 W rated output |
| Spindle cooling | Not published | Not published | Not published | Not published | Not published |
| Spindle speed | 100,000 rpm | Up to 60,000 rpm (full servo drive) | Up to 100,000 rpm | Up to 100,000 rpm | Up to 100,000 rpm |
| Collet / shank | 3 mm | Not published | 3.0 mm | 3.0 mm | 3.0 mm |
| Accuracy | Tool-length measurement 2 µm or better (not a guaranteed restoration accuracy) | Positioning accuracy +/-0.01 mm (manufacturer news) | Less than 10 µm | Less than 10 µm | Less than 10 µm |
| Tool magazine | 10 tools, automatic change | 21-position automatic tool changer (store) | 6 positions, automatic changer, RFID tool management | 6 positions, automatic changer, RFID tool management | 6 positions, automatic changer, RFID tool management |
| Tool sourcing (manufacturer-required or open OEM) | Not published by the manufacturers of any model on this page. Call 954-874-6325 and we will confirm which bur brands your machine accepts. | ||||
Materials milled | |||||
| Zirconia | Yes | Yes | Yes | Yes | Yes |
| Glass ceramic / glass blocks | Yes | Yes | Yes: wet milling (e.max CAD, VITA SUPRINITY, VITABLOCS) | Yes: wet milling (e.max CAD, VITA SUPRINITY, VITABLOCS) | Yes: wet milling (e.max CAD, VITA SUPRINITY, VITABLOCS) |
| PMMA | Yes | Yes | Yes | Yes | Yes |
| PEEK | Yes | Not published | Yes | Yes | Yes |
| Wax | Yes | Yes | Yes | Yes | Yes |
| Composite resin | Yes | Yes | Yes | Yes | Yes |
| Pre-milled blanks | Yes | Not published | Yes | Yes | Yes |
| Titanium | Pre-milled Ti only | Not published | Partial: titanium preforms with dedicated holder, not full titanium discs | Partial: titanium preforms with dedicated holder, not full titanium discs | Partial: titanium preforms with dedicated holder, not full titanium discs |
| Titanium bars (implant bar) | No confirmed full-disc capability | Not published | Not listed | Not listed | Not listed |
| Chrome cobalt (CoCr) | Yes | Not published | Partial: Ceramill Sintron presintered CoCr, not solid CoCr discs | Partial: Ceramill Sintron presintered CoCr, not solid CoCr discs | Partial: Ceramill Sintron presintered CoCr, not solid CoCr discs |
Room and utilities | |||||
| Water cooling | Integrated 3 L tank | Wet mode (switchable); tank not described | Wet machining with external coolant supply system | Wet machining with external coolant supply system | Wet machining with external coolant supply system |
| Air requirements | 3 bar, 50 L/min | Not published | 6 bar (87 psi), 50 L/min | 6 bar (87 psi), 50 L/min | 6 bar (87 psi), 50 L/min |
| Dust extraction / vacuum | External extraction required for dry milling (recommended: iVAC silent / silent PRO) | High-power dust-suction interface for a dedicated extraction vacuum (such as GUSROM GSM V0) | External extraction required for dry machining (38 mm connection, 240 m3/h per manual) | External extraction required for dry machining (38 mm connection, 240 m3/h per manual) | External extraction required for dry machining (38 mm connection, 240 m3/h per manual) |
| Power supply | 100-240 V, 50/60 Hz | Not published | 100-230 V, 50/60 Hz; 250 W power consumption | 100-230 V, 50/60 Hz; 250 W power consumption | 100-230 V, 50/60 Hz; 250 W power consumption |
| Dimensions / weight | 422 x 556 x 644 mm, 75 kg (165 lb) | Not published | 595 x 530 x 780 mm, approx. 78 kg | 595 x 530 x 780 mm, approx. 78 kg | 595 x 530 x 780 mm, approx. 78 kg |
| Installation | Not published by the manufacturers of any model on this page. Call 954-874-6325 and we will confirm what your site needs. | ||||
Software | |||||
| CAM options | iCAM V5 (eco, smart, smart expert) and iCAMHD eco; integrated Windows PC with SmartControl, no external PC required | Open CAM input | Not published | Not published | Not published |
Throughput, warranty and price | |||||
| Time per crown | Not published | Not published | Not published | Not published | Not published |
| Warranty | Not published | Not published | Not published | Not published | Not published |
| Price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price | Call for Price: 954-874-6325check live price |
On “time per crown”: manufacturers do not publish a comparable per-crown cycle time, and we will not invent one. Real cycle time depends on the material, the disc, the CAM strategy, the tool set and the margin detail. Tell us what you mill and we will give you a realistic figure from labs running the same work. Call 954-874-6325.
What the processing mode means in practice, before you compare individual models.
These models list glass ceramic among the materials they mill.
iMES iCORE CORiTEC 150i PRO, Gusrom GSM 7X
Send us your materials, case volume and room details. We recommend the right model and quote it in writing the same day.
Where the store listing, the manufacturer site or a brochure disagree, we show the conflict instead of picking a number silently. Confirm anything critical with us in writing before you order.
Milling machine pricing depends on configuration: voltage, cabinet, cooling, dust extraction and software all change the number. Rather than publish a figure that will not match your build, we quote in writing. Request a quote or call 954-874-6325 and you get a real price the same day.
iMES iCORE, Gusrom, Amann Girrbach. Every dry and wet milling unit in the US Dental Depot CAD/CAM milling-units catalog is in the table, including voltage and open-box variants where they exist.
By the processing mode and materials the manufacturer or our store listing publishes. Where the store listing and the manufacturer disagree, the Data Notes section below the table says so, model by model.
Yes. Delivery, installation and operator training are arranged by US Dental Depot and quoted with the machine, so the full cost is on the quote before you commit. Call 954-874-6325.
It differs by brand and model. The Power supply row shows what each manufacturer or store listing publishes. Confirm your available supply with us before ordering.
Tell us the materials you mill and the volume you run. We will come back with the right model and a written price the same day.
