DEPRAG Dental · 5-Axis CAD/CAM Milling Units
Five 5-axis DEPRAG mills, one simple decision tree. Choose Dry (D5 Air Free, D5 Max) for zirconia, PMMA, PEEK, wax and composite — or Dry & Wet (W5, W5 Pro, W5 Max) to add glass ceramics and metal. Then pick a disc changer for unattended runs. All stocked by US Dental Depot.
Dry & Wet · No disc changer · metal-capable
USDD groups DEPRAG mills exactly the way you choose one: first the processing mode, then whether you want an automatic disc changer for unattended production.

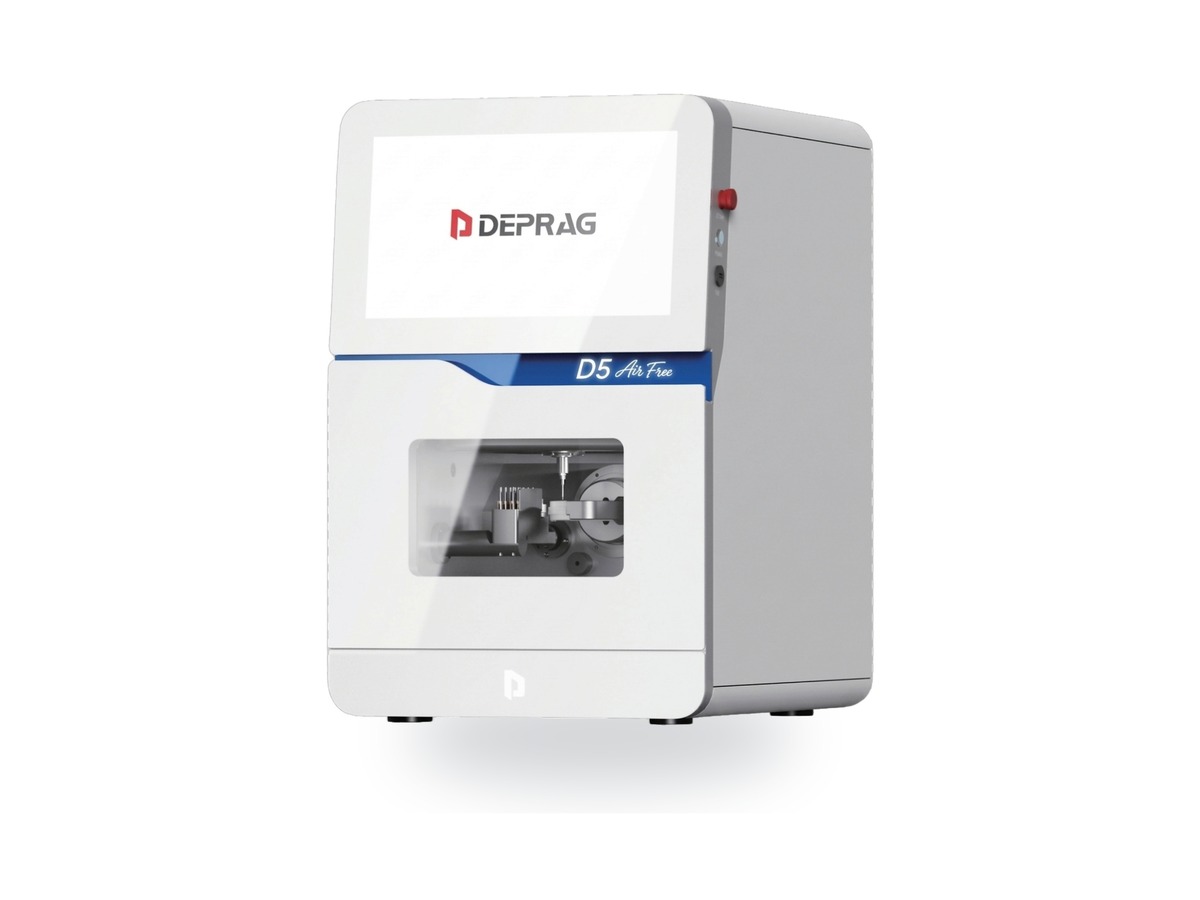

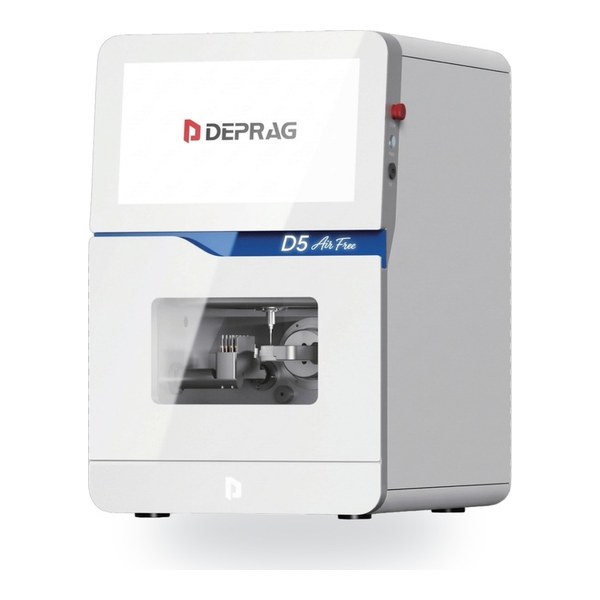

5-axis dry mill with an air-free design — no external compressor, lower cost and quieter operation. German spindle, 0.01 mm accuracy.
German spindle · 5-axis · 0.01 mm · no compressed air
$18,142 / set
View at US Dental Depot

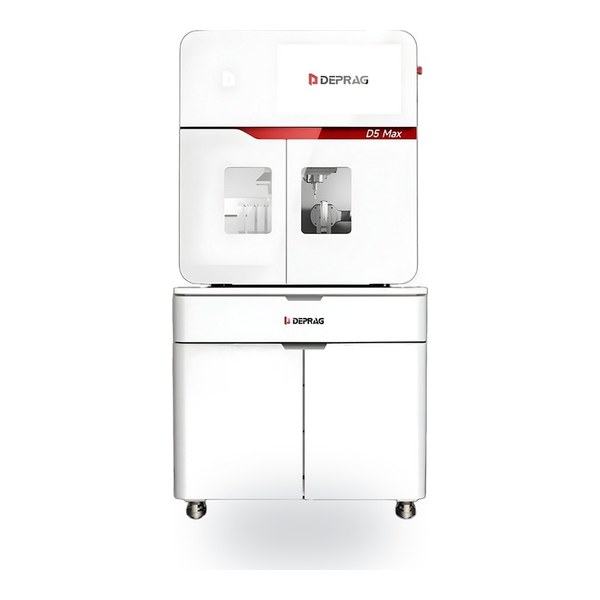

5-axis dry mill with an 8-disc automatic changer and RFID trays for true 24/7 unattended milling — ~1.6× the output of manual disc swapping.
1.8 kW spindle · 8-disc changer · RFID · 24/7
$18,142 / set
View at US Dental Depot

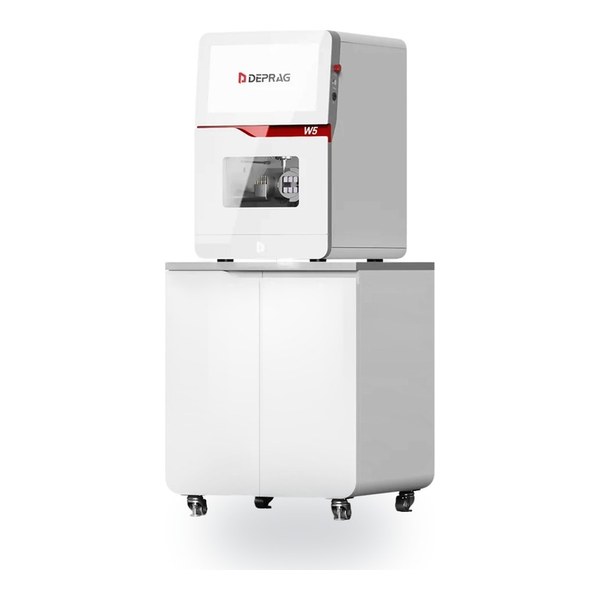

Compact cast-aluminium all-in-one mill for dry, wet and metal — covers ~90% of indications.
2.5 kW · 18×2 tools · 130 kg
$23,587 / set

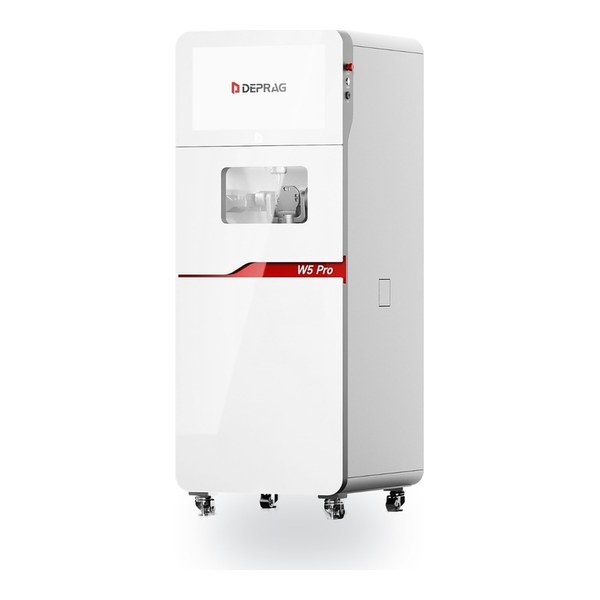

View at US Dental DepotHeavy iron-frame flagship with 398 Ncm high-torque spindle and 24×2 tooling for CoCr, titanium and high volume.
398 Ncm · 24×2 tools · 300 kg
$29,030 / set
View at US Dental Depot

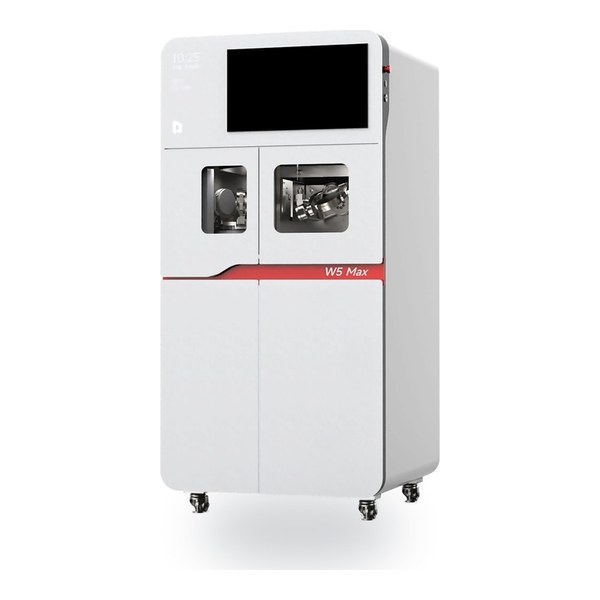

Floor-standing dry & wet flagship with a 10-disc automatic changer and 24-tool magazine for unattended, high-volume metal work.
2.5 kW 62 mm · 10-disc · cast iron
$43,200 / set

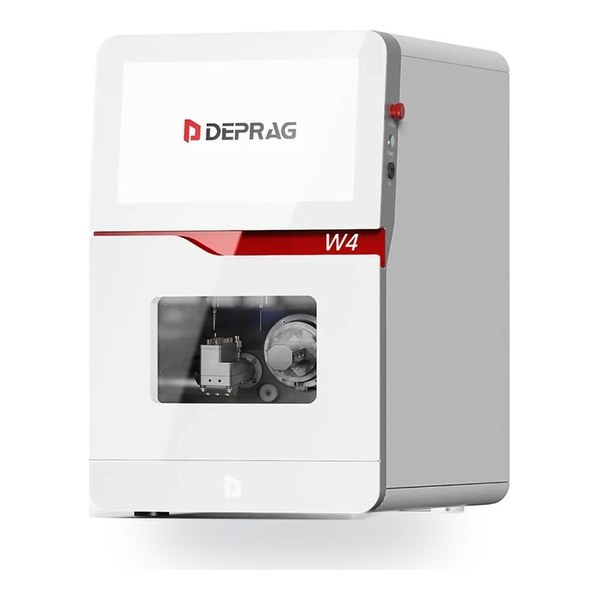

View at US Dental DepotAlso available: DEPRAG W4 — a wet-only 4-axis entry mill.
Tell us your materials and case volume — a specialist will point you to the right mode, disc-changer option, pricing and install timeline.
The core technology every DEPRAG mill shares, from the dry D5 Air Free to the dry & wet W5 Max.
A-axis 360° and B-axis ±30° enable 90° vertical processing and 1:1 anatomical detail without re-grinding.
Air-cooled dry spindles and 2.5 kW water-cooled spindles run to 60,000 rpm with 0.01 mm accuracy.
Dry units mill zirconia, PMMA, PEEK, wax and composite; dry & wet adds glass ceramics, titanium and CoCr.
8-disc (D5 Max) and 10-disc (W5 Max) automatic changers with RFID for 24/7 unattended production.
Automatic calibration plus remote assistance on the W5 Pro, W5 Max and D5 Max keep uptime high.
Works with MillBox and major scanners and CAM software for a standards-based digital pipeline.

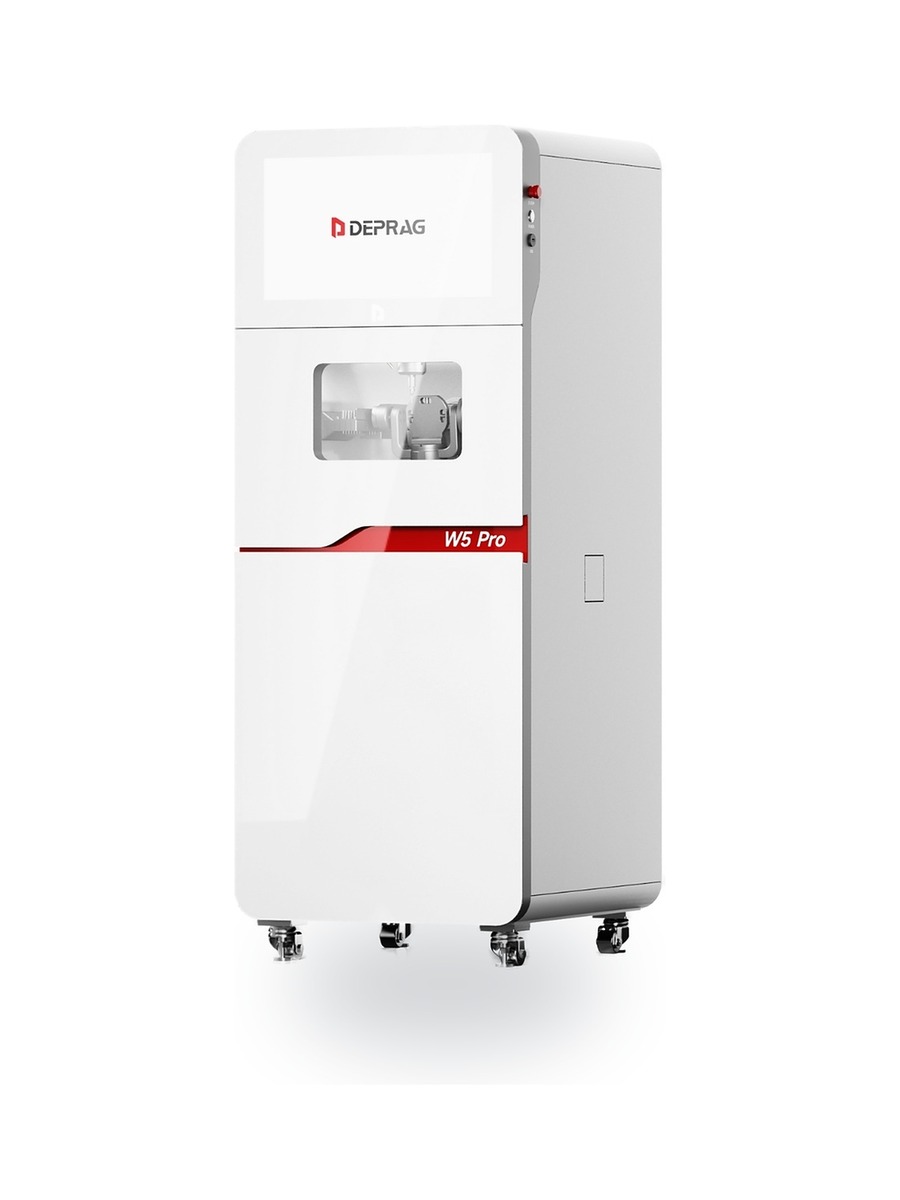

Both are dry & wet, no-disc-changer mills on the same 5-axis core. The W5 Pro trades a benchtop footprint for a heavier frame, more tooling and higher sustained throughput.
| Specification | DEPRAG W5 | DEPRAG W5 Pro ★ |
|---|---|---|
| Processing mode | Dry & Wet | Dry & Wet |
| Format | Benchtop | Floor-standing |
| Spindle | 2.5 kW water-cooled | 2.5 kW · 398 Ncm high-torque |
| Axes | 5 (A 360° / B ±30°) | 5 (A 360° / B ±30°) |
| Tool capacity | 18 × 2 | 24 × 2 |
| Disc changer | No | No |
| Frame | Aluminium | Iron |
| Dimensions (mm) | 523 × 718 × 820 | 685 × 730 × 1750 |
| Weight | 130 kg | 300 kg |
| Price (set) | $23,587 | $29,030 |
| Best for | Compact labs & clinics | High-volume production labs |
Power, air supply and bench/floor space differ across the lineup — especially the dry & wet water system. Get the milling-room checklist before you order.
The first decision is the processing mode. Dry is cheaper and simpler; dry & wet unlocks glass ceramics and metal. Each mode offers a no-disc-changer and a disc-changer model.
| Dry only | Dry & Wet | |
|---|---|---|
| Models | D5 Air Free · D5 Max | W5 · W5 Pro · W5 Max |
| Zirconia, PMMA, PEEK, wax, composite | Yes | Yes |
| Glass ceramics (wet) | No | Yes |
| Metal (titanium, CoCr) | No | Yes |
| Water cooling system + tank | Not required | Required |
| No disc changer | D5 Air Free — $18,142 | W5 — $23,587 · W5 Pro — $29,030 |
| Disc changer | D5 Max (8) — $18,142 | W5 Max (10) — $43,200 |
| Best for | Zirconia/PMMA-focused labs wanting lowest cost | Full-service labs needing ceramics + metal |
An honest look at dry vs dry & wet milling — pros & cons so the choice is clear before you buy.
Zirconia, PMMA, PEEK, wax & composite
Pros
Trade-offs
Adds glass ceramics + metal (Ti, CoCr)
Pros
Trade-offs
US Dental Depot quotes include the milling unit, clamps, recommended accessories and onboarding support.
Match the mode and disc-changer option to how you actually work.
D5 Air Free
You mill mostly zirconia and PMMA and want the lowest entry price with no compressor or water system.

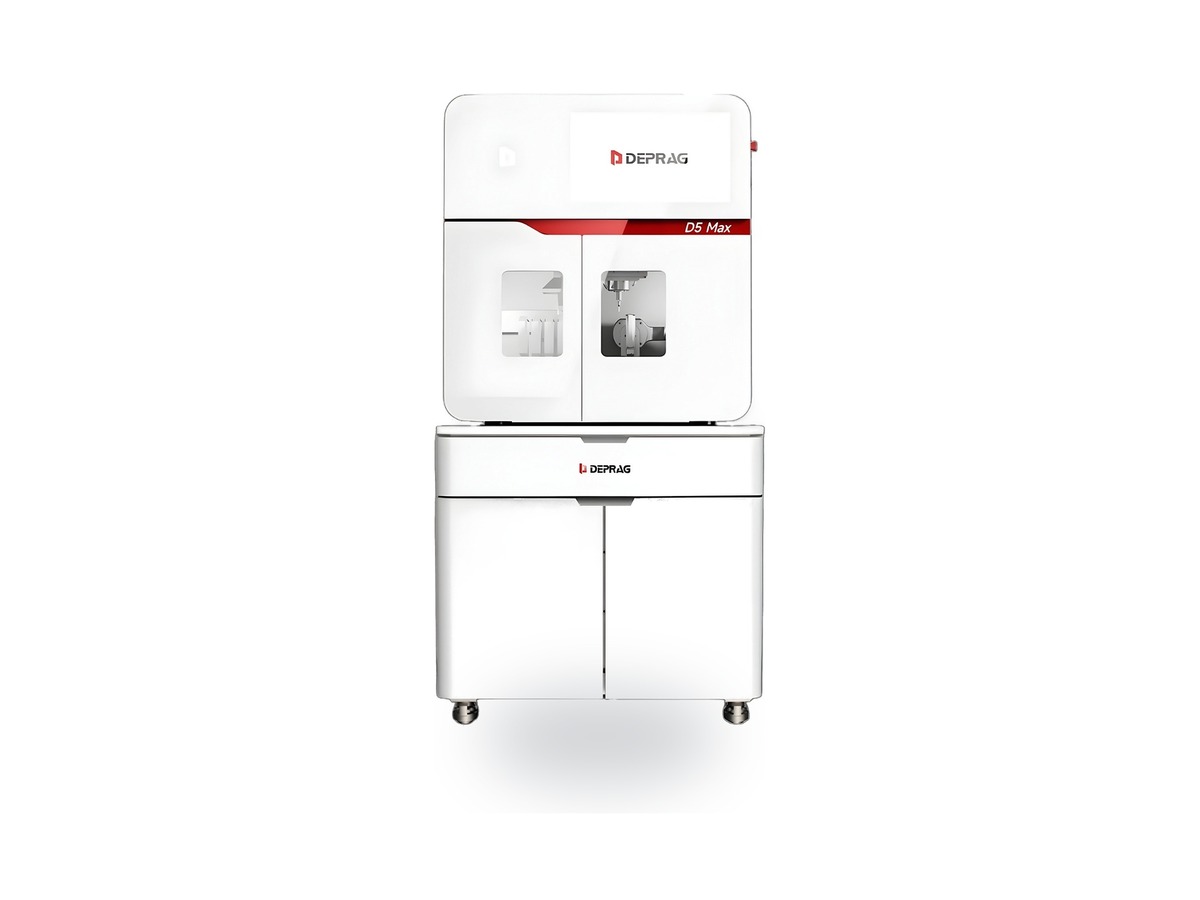

D5 Max
Dry materials only, but you need overnight 24/7 output via the 8-disc automatic changer.

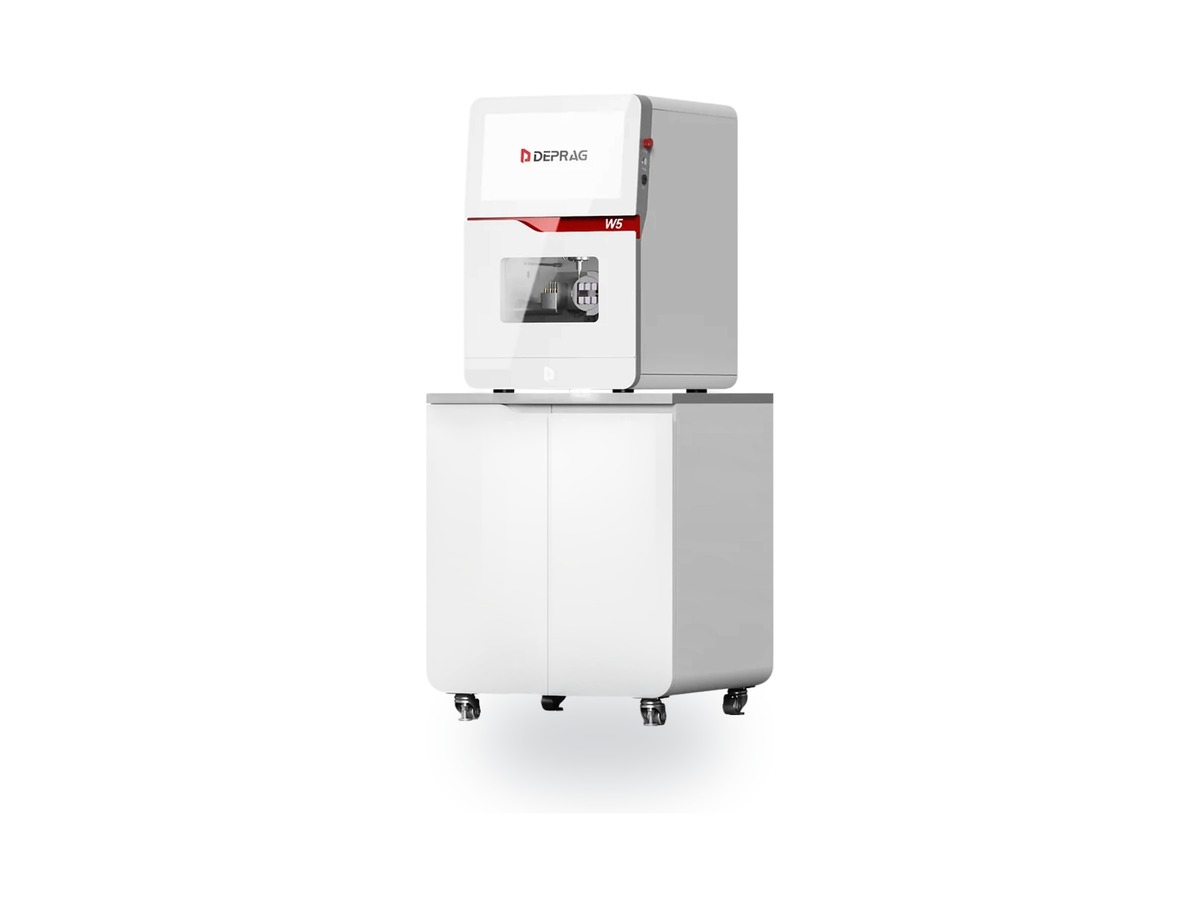

W5
You want glass ceramics and occasional metal in one benchtop machine without floor space.

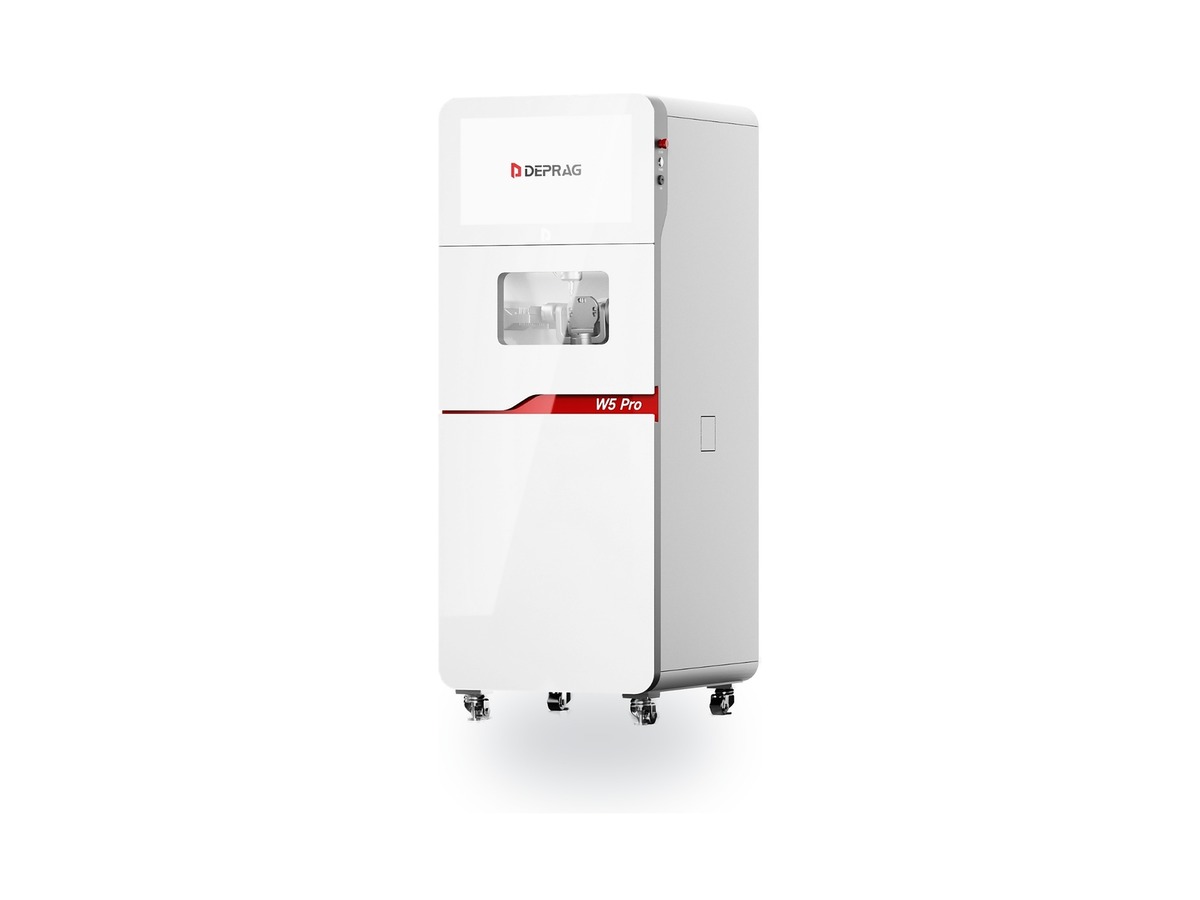

W5 Pro
Routine CoCr and titanium frameworks demanding high torque and a vibration-damped iron frame.

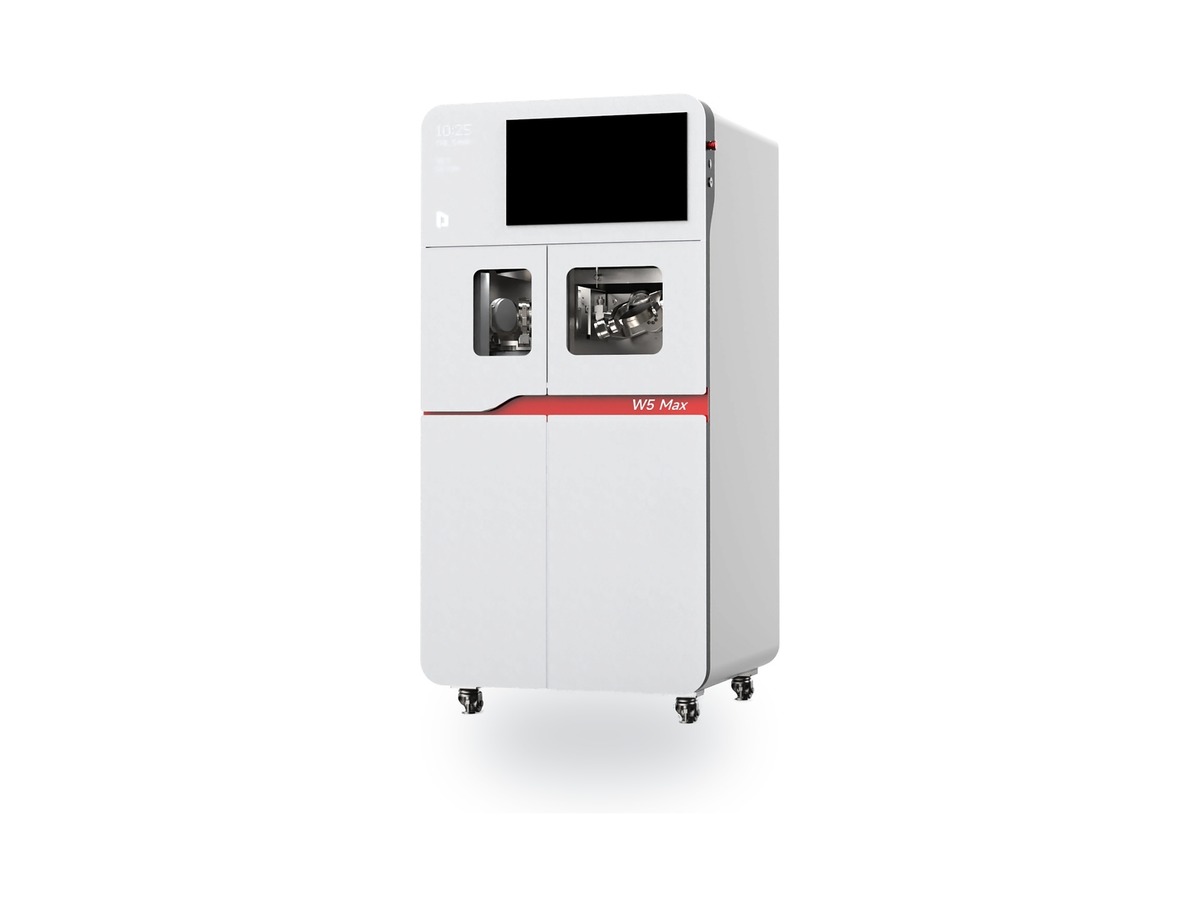

W5 Max
All materials plus a 10-disc changer for continuous, high-volume metal and ceramic production.

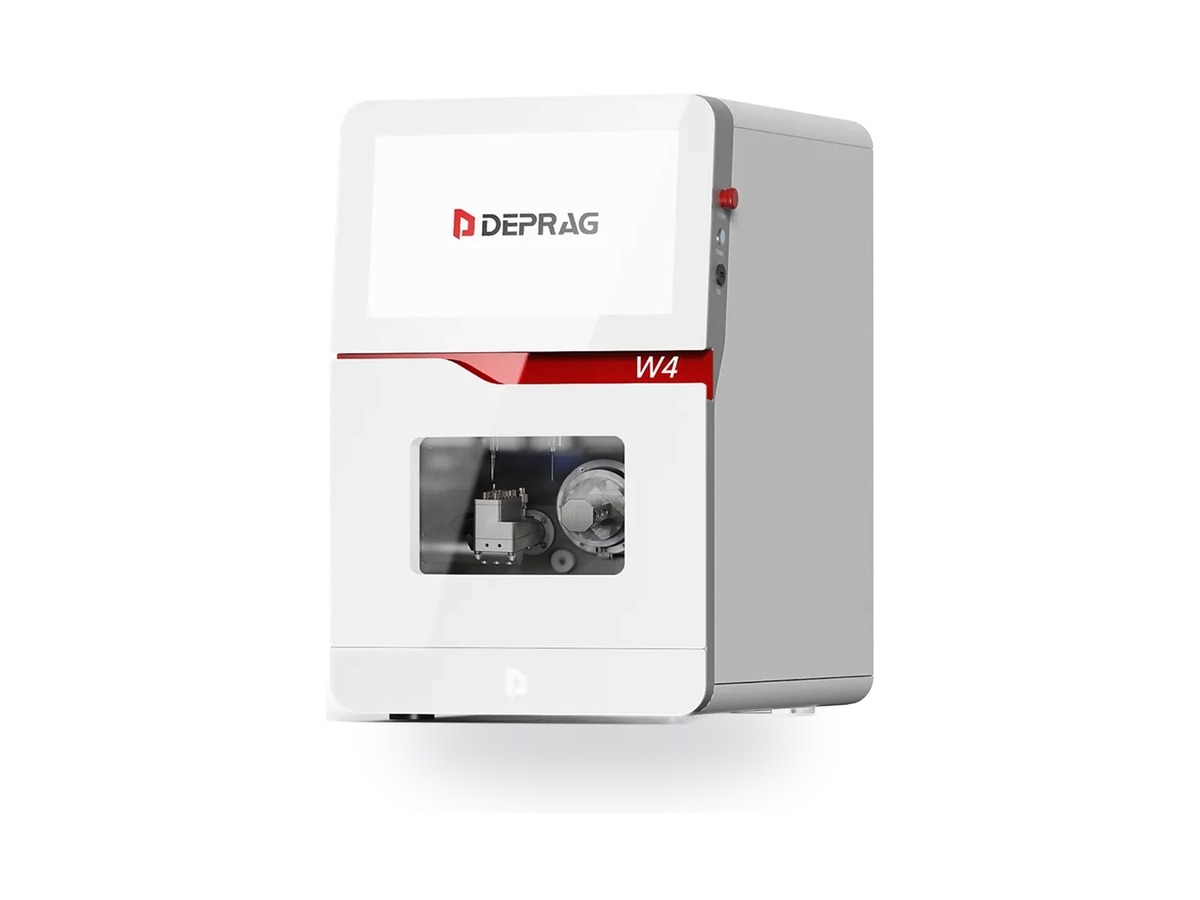

W4
A budget 4-axis wet mill when you only need basic wet work to start. (Needs a compressor.)
A US Dental Depot specialist will walk you through dry vs dry & wet and disc-changer options for your materials, volume and budget.
Everything that surrounds a DEPRAG mill — clamps, cooling, blanks and CAM software, all from US Dental Depot.
Stable spindle & coolant temperature for dry & wet milling.
C-clamp, block and pre-mill abutment holders.
Replacement spindle parts and φ6 mm collets.
Holders for the 5-axis chamber and disc changers.
98 mm discs, PMMA, wax & pre-milled blanks.
MillBox and compatible CAM for the DEPRAG workflow.
The full DEPRAG milling lineup, clamps and accessories with US-based onboarding and service.
We match the right mode and disc-changer option to your materials and volume — no overselling.
Boca Raton, FL hub serving the US, Caribbean and Latin America with milling expertise.
Compare dry vs dry & wet with a specialist, get a tailored quote, and put a 5-axis DEPRAG mill to work.
A USDD expert will reach out within 24 hours with a tailored recommendation, pricing and install timeline. No obligation.
