RENFERT - Pillo- Pneumatic Chisel - #50224000
9815_f.jpg)
9814_f.jpg)
9813_f.jpg)
9812_f.jpg)
Earn up to 630 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description
RENFERT
RENFERT · Deflasking Chisels

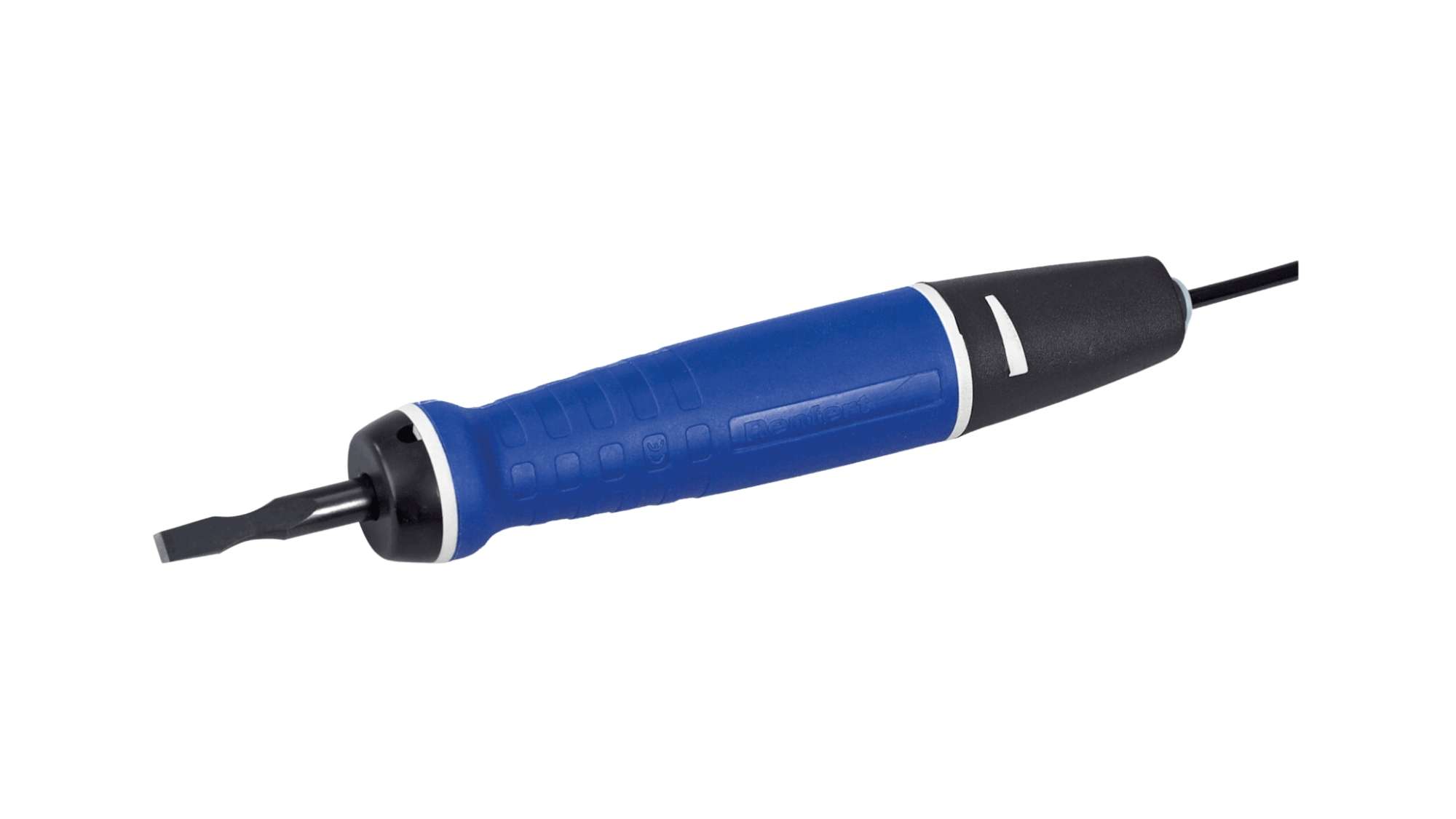

RENFERT PILLO- Pneumatic Chisel
SKU 120734 · RENFERT · made in Germany · Mfg# 50224000
Overview
PILLO - RENFERT item number 50224000. Deflasking Chisel. Laboratory-fabricated restorations are gently, quickly and easily deflasked using the PILLO.
Technical Data
PILLO - as published by RENFERT.
| Item number | 50224000 |
| Weight | 300 g / 10.6 oz |
| Dimensions (W x H x D) | Ø 29 x 157 mm / Ø 1.14 x 6.2" |
| Working pressure | 4 - 6 bar / 58 - 87 psi |
| Air consumption (max.) | 9 l/min / 0.32 cfm |
| Nominal operating pressure | 5 bar / 72 psi |
| Piston frequency | 110 Hz |
| Hand/ arm vibration (Ahv) (in accord. with EN ISO 5349-1) | 7.3 m/s² |
| Scope of delivery | Deflasking Chisel, Chisel insert No. 5022 0200, connecting hose (2 m/78.7"), set of connection filters |
Features
As stated by RENFERT.
- Save time and money with powerful and gentle devesting of sensitive restorations (castings, dentures).
- Absolutely maintenance-free due to special oil-free mechanism.
- Maximum health protection provided by minimal transmission of vibration to the joints.
- Infinitely variable Power setting.
- The ergonomic form provides an optimum, reliable grip and a high degree of working comfort.
How It Compares - RENFERT Deflasking Chisels
| Feature | PILLO (this unit) | Power PILLO |
|---|---|---|
| Weight | 300 g / 10.6 oz | 398 g / 14 oz |
| Dimensions (W x H x D) | Ø 29 x 157 mm / Ø 1.14 x 6.2" | Ø 29 x 168 mm / Ø 1.14 x 6.6" |
| Working pressure | 4 - 6 bar / 58 - 87 psi | 4 - 6 bar / 58 - 87 psi |
| Air consumption (max.) | 9 l/min / 0.32 cfm | 10 l/min / 0.35 cfm |
| Nominal operating pressure | 5 bar / 72 psi | 5 bar / 72 psi |
| Piston frequency | 110 Hz | 130 Hz |
| Hand/ arm vibration (Ahv) (in accord. with EN ISO 5349-1) | 7.3 m/s² | 5.2 m/s² |
| Scope of delivery | Deflasking Chisel, Chisel insert No. 5022 0200, connecting hose (2 m/78.7"), set of connection filters | Deflasking Chisel, Chisel insert No. 5022 0200, connecting hose (2 m/78.7"), set of connection filters |
| Item number | 50224000 | 50225000 |
Values per RENFERT technical data For the item numbers sold by US Dental Depot. A dash means RENFERT does not state that figure For the model.
RENFERT Accessories For This Unit
Accessories listed by RENFERT For this item. Ask a specialist For pricing and availability by item number.
| Flat Chisel, wide | 50220200 |
Documentation & Downloads
| Manual / User guide - Model casting technique | Manual | ES | PDF 3.1MB ES |
| Manual / User guide - Model casting technique | Manual | EN | PDF 3.1MB EN |
| FAQ - PILLO / Power PILLO 5022x000 | PDF Multilingual |
| Instruction manual - PILLO / Power PILLO 5022x000 | PDF 3.18MB Multilingual |
| Repair manual - PILLO 50224000 | A | PDF 1.84MB Multilingual |
| Declaration of conformity - Ausbettmeissel | PDF 1.15MB Multilingual |
Official RENFERT documents (PDF).
Warranty & Guarantee
US Dental Depot warrants this product against manufacturing defects For 1 year from the invoice date. Any item found defective within that period is replaced or refunded. Normal wear, consumption, and misuse are excluded. As an authorized RENFERT distributor we also facilitate any applicable manufacturer warranty service directly.Product description last updated: October 6, 2026
