ASEPTICO Express Air II Two Handpiece Connection Self Contained Portable Complete Unit -
Description
ASEPTICO - EXPRESS Air II 2 Complete Unit
PORTABLE DENTAL UNITS
# 013-ADU-17A2 - Mfg # ADU-17A2
Features:

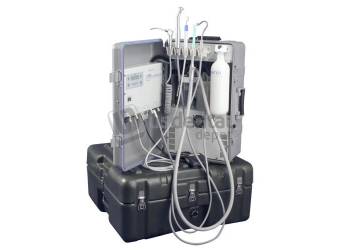

The ADU-17A2 features two handpiece controls, a 3-way air/water syringe, HVE and saliva ejector vacuum systems, a self contained water system, oilless air compressor, and vacuum pump. The dual voltage system comes in a case with wheels and a handle for maximum portability.
This article contains:
* PORTABLE Case with Compressor and Vacuum Pump
* TA-90D 3-Way Air/Water Syringe
* HVE and Saliva Ejector Vacuum Hoses with Valves
* Water Supply Bottle
* AA-42 Air Foot Control
* Power Cord
* Operation & Maintenance Manual
* Highspeed or Lowspeed Pneumatic Handpiece (Purchased separately)
* AWS-1C Cavitron Connector
* Two Spare 6A Fuses for 120V Operation
|
TECHNICAL |
SPECIFICATIONS |
|
Size: |
10.5" x 14.5" x 24" (27 cm x 36 cm x 61 cm) |
|
Volume: |
1.81 cu. ft. (0.05 m3) |
|
Weight: |
43.5 lbs (19.7 kg) |
|
Power Source: |
AC Dual Voltage Manual-Switching 120V / 230V at 50Hz / 60Hz |
|
Current Rating: |
6A at 120 VAC, or 3A at 230 VAC |
|
Air Source |
1/3 H.P. Oil-Free Compressor/Vacuum Pump |
|
Power Rating: |
800 W |
|
Operating Pressure: |
45 - 50 PSI (344 kPa) |
|
Average Air Flow Pressure: |
30 PSI, 0.33 SCFM (275 kPa, 9.35 liters/min) |
|
High Volume Vacuum: |
3.0 SCFM - 4" Hg (84.9 liters/min) |
|
Low Volume Vacuum: |
1.4 SCFM - 1.5" Hg (39.6 liters/min) |
|
Water Reservoir Capacity: |
33.9 fl. oz. (1.0 liter) |
|
Water Flow: |
5.07 fl. oz./min (0.15 liter/min) |
|
Waste Tank Capacity: |
1.08 gal. (4.08 liters) |
|
Noise Level: |
72 dBA - 3´4" (1 meter) |
|
Unit Duty Cycle: |
Continuous |
