ADS Dental Systems - AJ18 Beyond 300 AJ18 Operatory Packages - # A9183002
15222_f.jpg)
Earn up to 18,188 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description
AJ18 Beyond 300
OTP Operatory Package without cuspidor
STANDARD FEATURES
STANDARD FEATURES: AJ18 HYBRAULIC CHAIR:
■
With 3 programmable positions
■
Double articulating headrest
■
Swing up/down iron armrest
■
Cast iron chair frame
■
Iron backrest stand
■
Cast aluminum base
■ Wide backrest, upgraded fiber leather
■
60 degrees seat rotation, chair safety switch
■
One touchpad, Foot control
SWING Beyond DENTIST'S CONTROL HEAD & STANDARD TOUCHPAD:
■
Cast aluminium delivery head base, double pivot delivery head, with 3 auto H.P. control
■
Individual water coolant controls
■
Master handpiece air coolant adjustment
■
Asepsis handpiece tubing
■
Master on/off switch, 1 doctor syringe
■
Wet/Dry foot control
■
Stainless steel tray with non-slip pad
■ City/bottled water system, 5 ft umbilical
JUNCTION BOX WITH AIR/WATER FILTERS, REGULATORS & MASTER SHUT-OFF VALVES:
■ Chair mounted swing rear cuspidor and assistant vacuum package
■ Assistant touchpad, Water outlet and air QD on assistant tray
■ Solids collector, 2 HVE, 1SE, 1 syringe
■ Swing mount LED light with sensor control, 3 level intensity adjustment
PACKAGE INCLUDES
PART NUMBER
A091802
A0723005
A0502550
A0730021
A0602670
A11209
DESCRIPTION
A J 1 8 Hydraulic Chair
AJ18 wide backrest hydraulic chair with 3 programmable postions and fiber leather
AJ18 wide backrest hydraulic chair with 3 programmable postions and fiber leather
Be-yond300 Delivery system with A J 1 8 Junction box
Be-yond Post mount Dentist's Control
Beyond luxury dentist's control head, Cast aluminium delivery head base, double pivot delivery head, with 3 auto H.P. control, 1 doctor syringe, Wet/Dry foot control, Stainless steel tray, Rigid arm and Flex arm
Beyond luxury dentist's control head, Cast aluminium delivery head base, double pivot delivery head, with 3 auto H.P. control, 1 doctor syringe, Wet/Dry foot control, Stainless steel tray, Rigid arm and Flex arm
Be-yond300 Post Mounted Utility (PMU) with A J 1 8 Junction box
Beyond300 Post mounted utility (PMU) with silver side box, City water/bottled system, Swing assitant tray with touchpad, 2 HVE,1SE,1 syringe, Alumium base Junction box with valves
Beyond300 Post mounted utility (PMU) with silver side box, City water/bottled system, Swing assitant tray with touchpad, 2 HVE,1SE,1 syringe, Alumium base Junction box with valves
Post mount Amber II LED light
Post mount touchless sensor Amber II LED light with 30" light post
Post mount touchless sensor Amber II LED light with 30" light post
Chair adapter M
COLOR SELECTION
OPTIONAL
PART NUMBER
A121532
A121533
A120501
A120401
A120403
A120301
A121901
A0502532
A080103
A080224
8018895
A121963
A121973
91800C
DESCRIPTION
HP Fiber optic system with 1 tubing (6 pin)
HP Fiber optic system with 2 tubings (6 pin)
ADS post mount Monitor bracket
Built-in scaler
Built in scaler with LED
Built-in curing light
Additional umbilical per foot (for Beyond 300/Beyond 301)
Continental dentist's control
D3 Doctor stool
N4 Assistant stool
Additional 4th handpiece tubing
Bien Air MCX Built In System without touchpad.
Bien Air MCX Built In System with touchpad
Comfort kit (Heating, Massage)
PACKING DIMENSIONS (L*W*H)
Chair
Upholstery
Beyond Dentist's Control
PMU
Dental Light
48.1*32.3*37.6"
50.4*9.3*25"
30.8*23.1*14.1"
37.4*25.7*16.1"
31.1*18.1*7.1"
WEIGHT
346 lbs
17.6 lbs
44 lbs
75 lbs
22.6 lbs

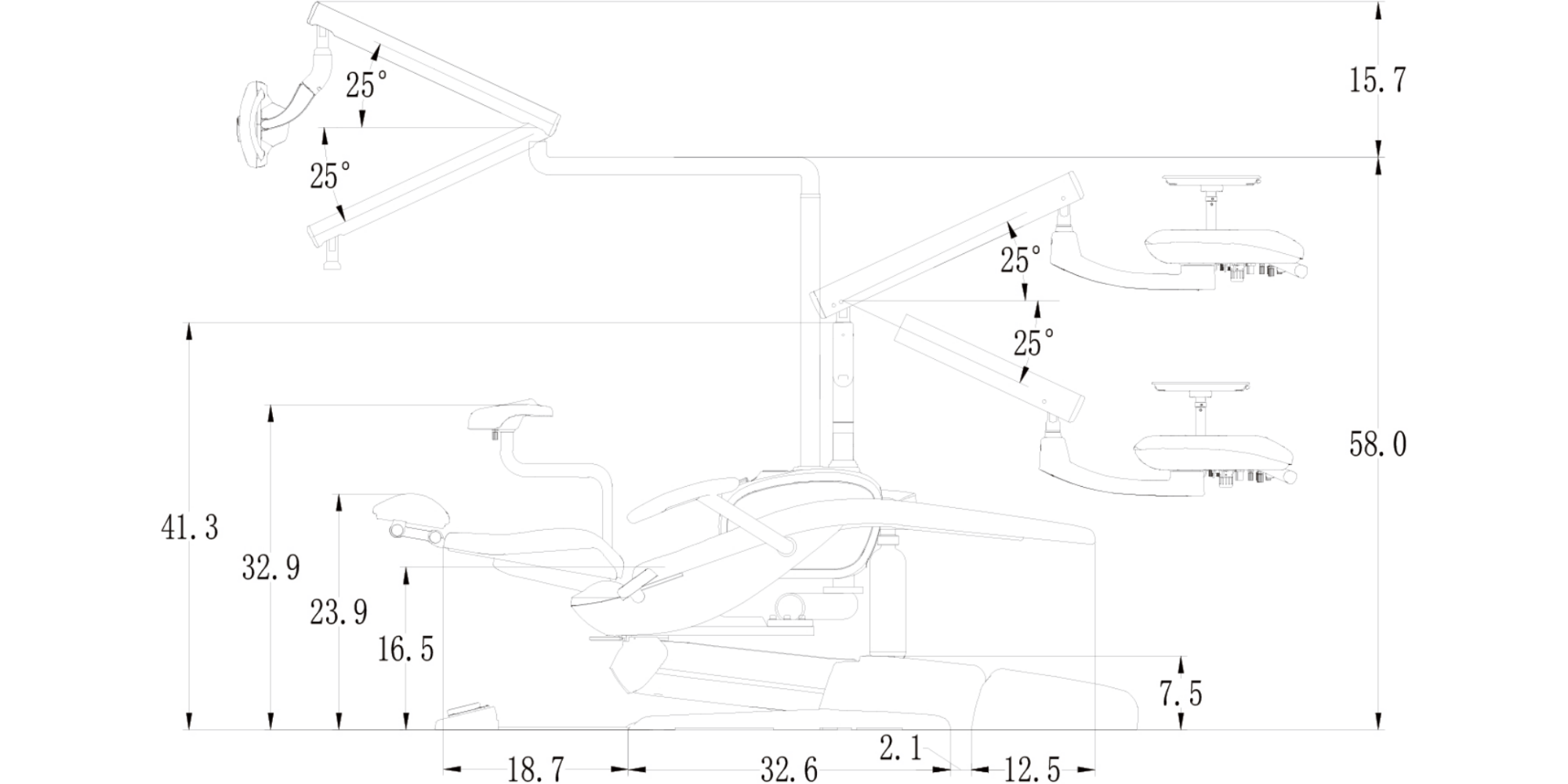

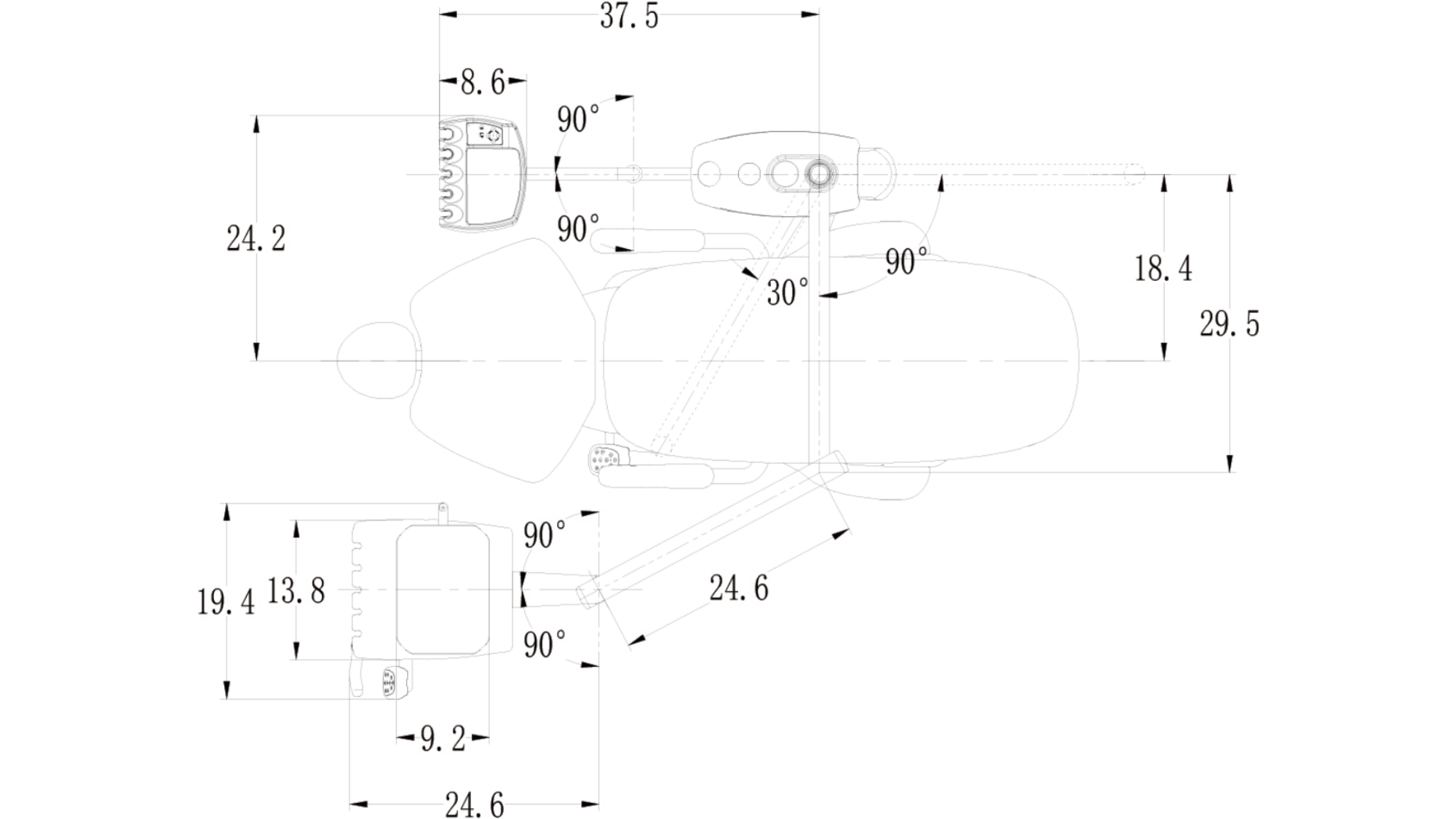

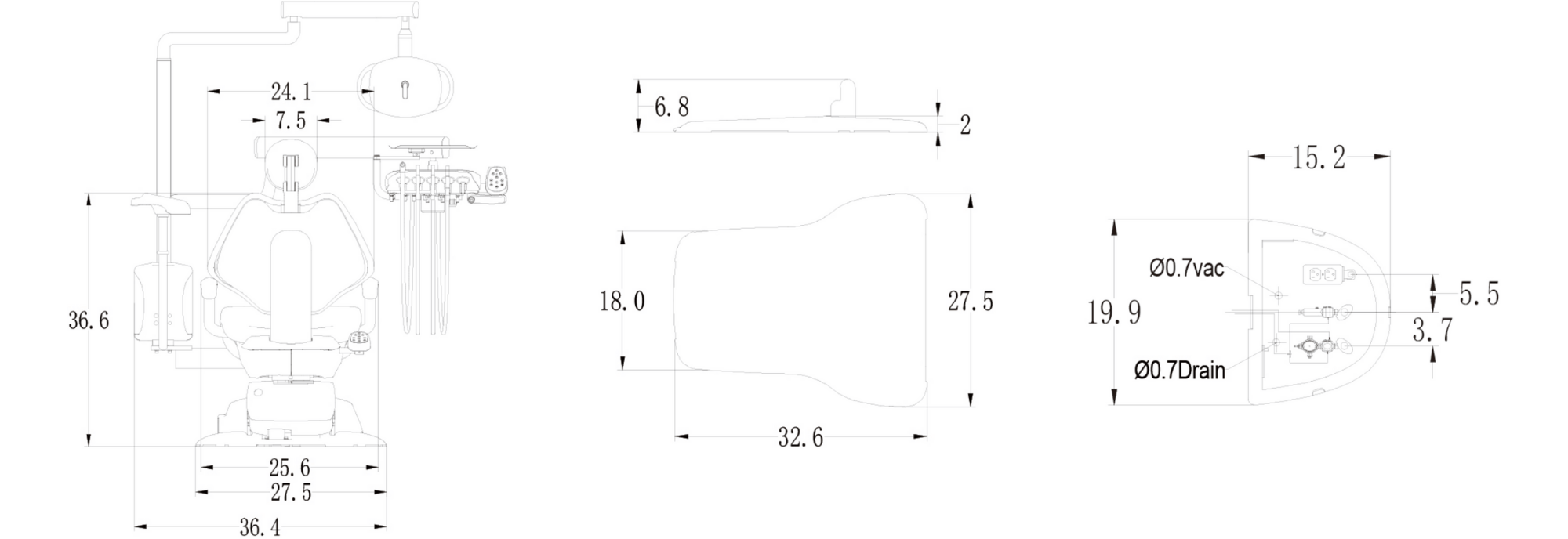

DIMENSIONS (UNIT: INCH)
DOWNLOADS
